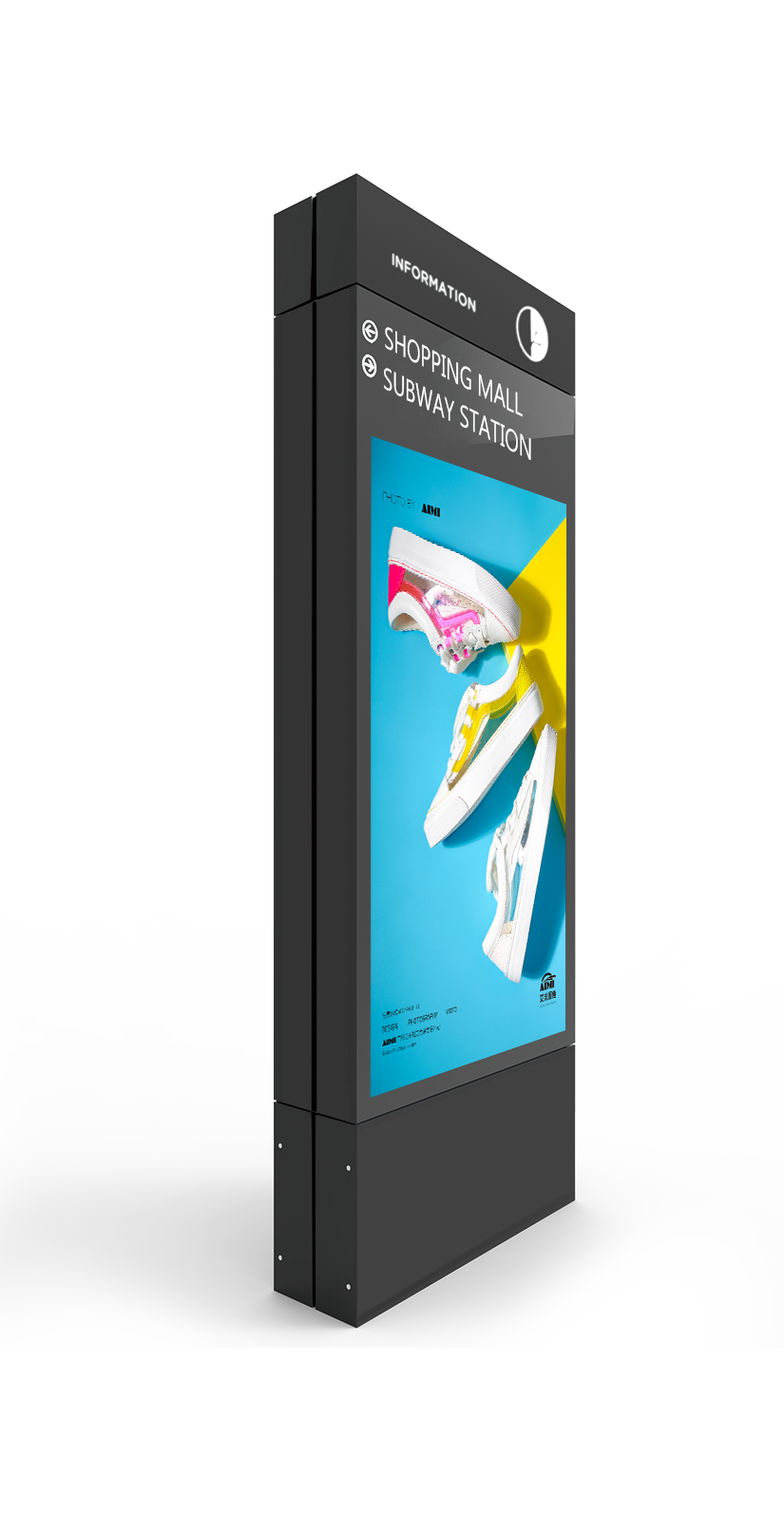

BRIGHTSIGN-B200

Outdooing floor standing signage

Description

  • Our outdoor digital signage displays use a completely different design process from indoor displays. Brightsign-B200 Free-standing Outdoor LCD Display builts as IP65/IP55 fully enclosed display module, and complete proof to all the elements such as dust, rain, moisture, and so on. can cope with various changes in outdoor weather conditions. And Firefly-visual launched two different types of outdoor kiosk for sale, fan cooling or air conditioning cooling, to meet the choices of many customers.

Features

  • IP55/IP65
  • Automatic Temperature Control
  • Automatic brightness control
  • Security lock
  • Additional monitoring devices are available
  • Customized logo options

Reference Dimension

  • 43″: 1770*710*130mm(H*W*D) Base: 710*600mm(W*D)
  • 55″: 1970*860*130mm(H*W*D) Base: 980*600mm(W*D)
  • 65″: 2150*980*130mm(H*W*D) Base: 860*600mm(W*D)


Operating enviromentOutdoor floor stand kioskSpecifications
OutdoorPANELDisplay55"65"75"86"
Screen Size
Panel TechnologyIPS,M+(WRGB)IPS,M+(WRGB)IPS,M+(WRGB)IPS,M+(WRGB)
Back light typeWLEDWLEDWLEDWLED
Asper Ratio16:0916:0916:0916:09
Native resdution1080*19202160*38402160*38402160*3840
Brightness2000~3000nits2000~3000nits2000~3000nits2000~2500nits
contrast Ratio1200:11200:11200:11200:1
Dynamic CRCR≥10CR≥10CR≥10CR≥10
Viewing Angle(H*V)178*178178*178178*178178*178
Response time6ms8ms8ms8ms
Surface Treatment(Haze.Quater Wave plate) (Haze 3%)，Hard coating (2H) (Haze 3%)，Hard coating (2H) (Haze 3%)，Hard coating (2H) (Haze 3%)，Hard coating (2H)
Life Time(Type)50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h
Operation Hours24h24h24h24h
Orientation Portrait & Landscape Portrait & Landscape Portrait & Landscape Portrait & Landscape
ConnectivityInputHDMI,  VGA, USB*2HDMI,DP,VGA,AUDIO,USBHDMI,DP,VGA,AUDIO,USBHDMI,DP,VGA,AUDIO,USB
OutputExternal Speaker Out(L/R)External Speaker Out(L/R)External Speaker Out(L/R)External Speaker Out(L/R)
External Control



PHYSICAL SPECIFICATIONProtection Glass 6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective) 6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective) 6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective) 6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)
Bezel ColorBlack/SilverBlack/SilverBlack/SilverBlack/Silver
KEY FEATURETemperature Sensor, Auto Brightness sensor
ENVIRONMENTCONDITIONSOperation Temperature.-20°C to 40 °C with fans;-30°C to 50 °C with air conditioner).-20°C to 40 °C with fans;-30°C to 50 °C with air conditioner).-20°C to 40 °C with fans;-30°C to 50 °C with air conditioner).-20°C to 40 °C with fans;-30°C to 50 °C with air conditioner)
Operation Humidity.-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing
POWERPower Supply 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz
Power TypeBuilt-In PowerBuilt-In PowerBuilt-In PowerBuilt-In Power
POWERCONSUMPTIONTyp./Max.2000nits260W/360W335W/520W390W/600W850W/1200W
2500nits320W/445W420W/580W490W/700W1000W/1450W
3000nits370W/510W480W/720W570W/800W
CERTIFICATIONSafetyPSEPSEPSEPSE
EMCPSE/VCCIPSE/VCCIPSE/VCCIPSE/VCCI
SOFTWARECOMPATIBILITYSuperSignYes(CMS, Control)Yes(CMS, Control)Yes(CMS, Control)Yes(CMS, Control)
