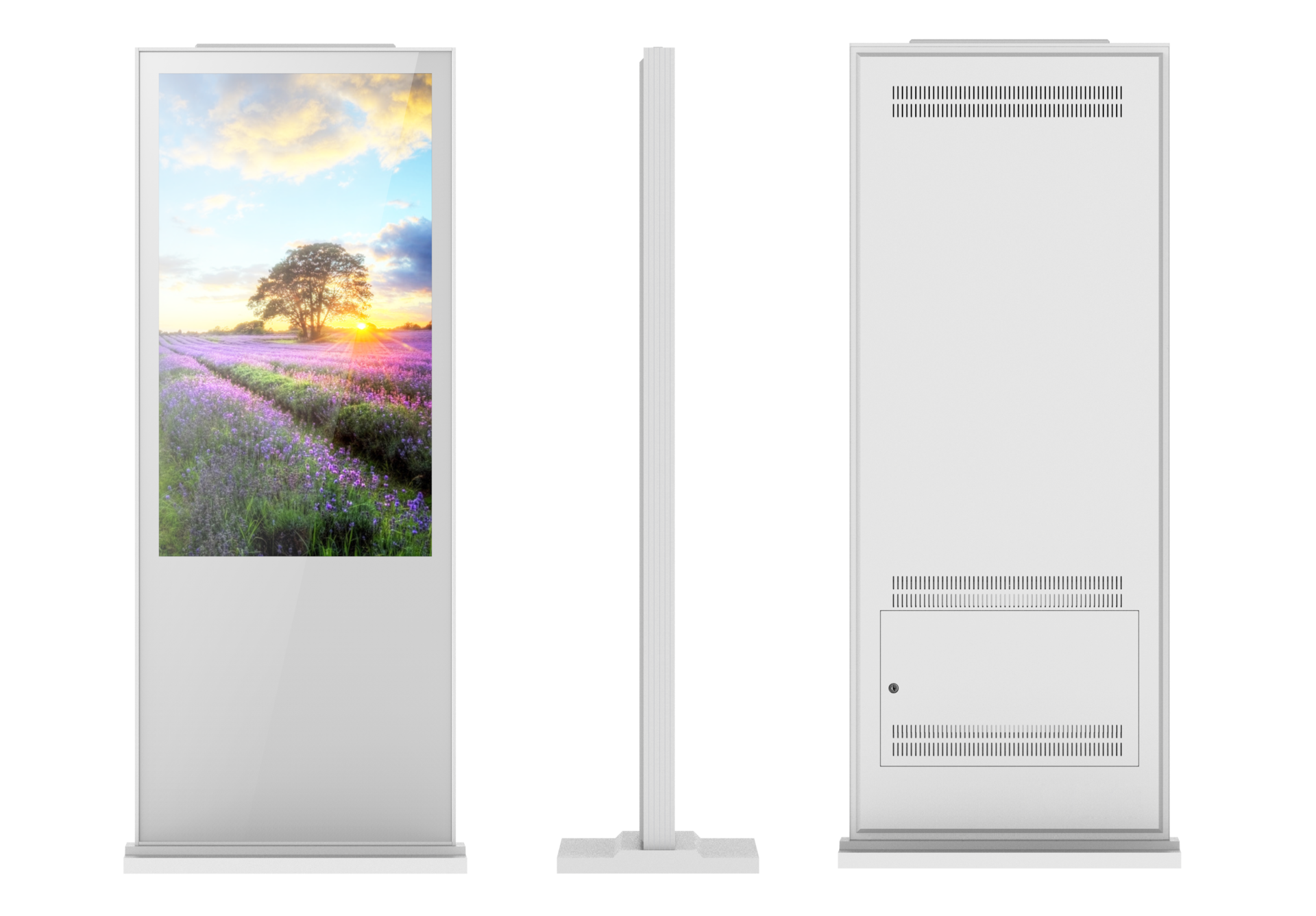

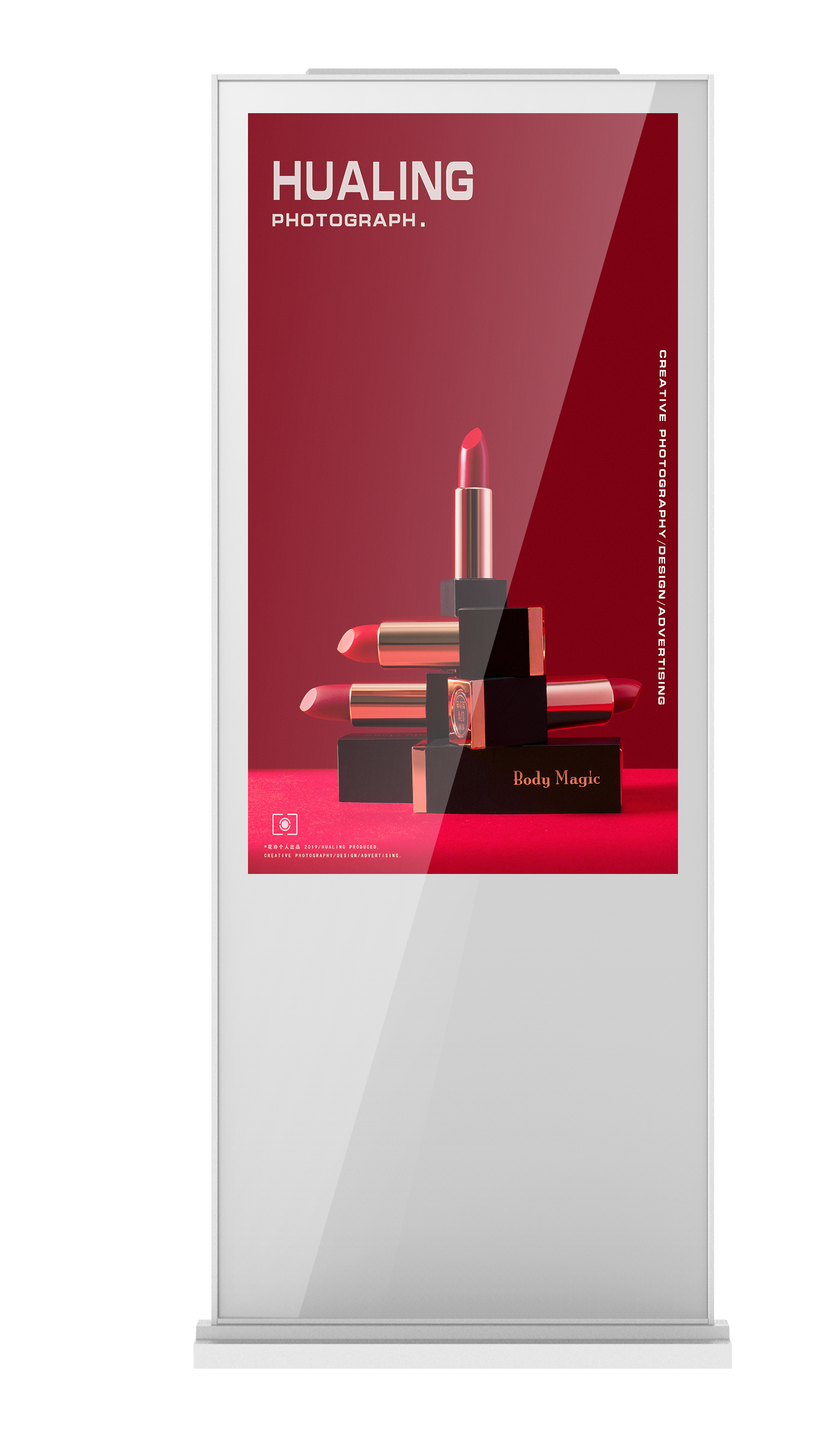

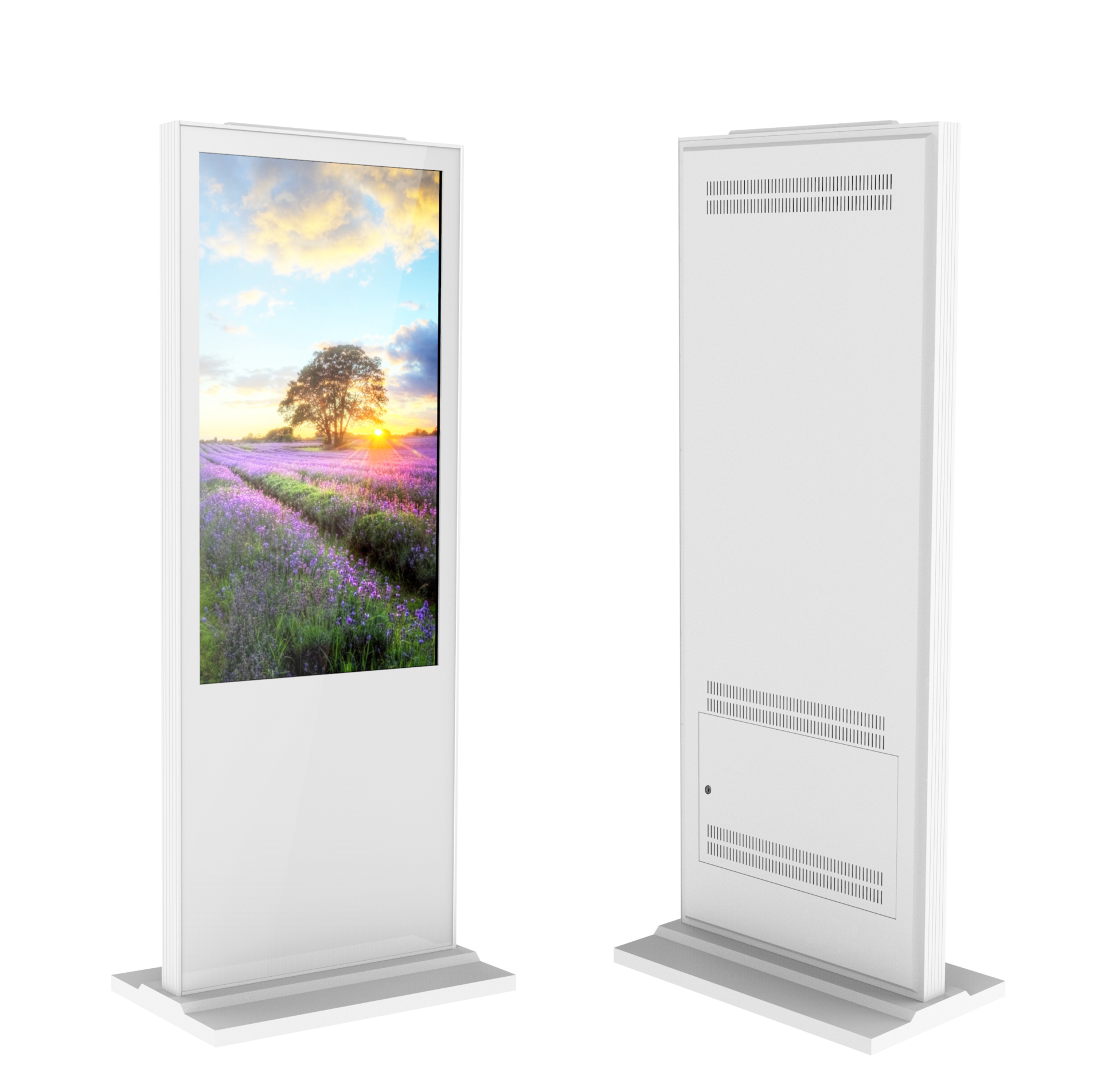

CLEARSIGHT-C100

INDOOR CLASSIC DESIGN


Description

  • The Indoor totem classic, a floor standing digital signage and LCD advertising display which is a product of new style launched in 2019 by Firefly Visual, is equipped with a light bar options aiming at supplying the most distinctive appearance design for customers to maintain. Given its extraordinary thickness of ultra-thin aluminium profile, LCD display panel Clearsight-C100 has been successfully welcomed in the shopping mall, hospital and banks. Common structure for multiple operating systems and optional light bar design, Clearsight-C100 to be the most popular LCD displays among plentiful similar ones.

Features

  • Reinforced aluminum profile
  • Multiple touch screen selection
  • Open door design for easy maintenance
  • Light bar options

Reference Dimension

  • 49inch :W710*H1976.5*T750mm


Operating   enviromentIndoor totem   classicSpecifications
IndoorPANELDisplay43"49"55"65"
Screen Size
Panel TechnologyIPS,M+(WRGB)IPS.M+(WRGB)IPS,M+(WRGB)IPS,M+(WRGB)
Back light typeWLEDWLEDWLEDWLED
Asper Ratio9:169:169:169:16
Native resdution1080*19201080*19201080*19202160*3840
Brightness300/700/1000nits300/700/1000nits300/700/1000nits300/700/1000nits
contrast Ratio1200:11200:11200:11200:1
Dynamic CRCR≥10CR≥10CR≥10CR≥10
Viewing Angle(H*V)178*178178*178178*178178*178
Response time6ms6ms6ms8ms
Surface Treatment(Haze.Quater Wave plate)(Haze   1%)，Hard coating (3H)(Haze   1%)，Hard coating (3H) (Haze 3%)，Hard coating (2H) (Haze 3%)，Hard coating (2H)
Life Time(Type) 50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h
Operation Hours24h24h24h24h
Orientation Portrait & Landscape Portrait & Landscape Portrait & Landscape Portrait & Landscape
ConnectivityInput HDMI, VGA, DVIHDMI, VGA, DVIHDMI,  VGA, DVIHDMI,DP,VGA,AUDIO,USB
Output External Speaker Out(L/R)External Speaker   Out(L/R)External Speaker   Out(L/R)External Speaker   Out(L/R)
External ControlRJ45(LAN)   In/OutRJ45RJ45RJ45
PHYSICAL SPECIFICATIONProtection Glass4mm(Degree   of Protection, Tempered)4mm(Degree   of Protection, Tempered)4mm(Degree   of Protection, Tempered)4mm(Degree   of Protection, Tempered)
Bezel ColorBlackblackblackblack
KEY FEATURENO system with HDMI input Optional Android or   windows system
ENVIRONMENT
    CONDITIONS		Operation Temperature0°C   to 40 °C 0°C   to 40 °C 0°C   to 40 °C 0°C   to 40 °C
Operation Humidity.-10°C   to 80 °C RH Non-condesing .-10°C   to 80 °C RH Non-condesing .-10°C   to 80 °C RH Non-condesing .-10°C   to 80 °C RH Non-condesing
POWERPower Supply 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz
Power TypeBuilt-In   PowerBuilt-In   PowerBuilt-In   PowerBuilt-In   Power
POWER
    CONSUMPTION		Typ./Max.51W/73W50W/72W121W/173W161W/230W
SOFTWARE
    COMPATIBILITY		SuperSignYes(CMS,   Control)Yes(CMS, Control)Yes(CMS, Control)Yes(CMS, Control)
ACCESSORYBasicRemote Controller, Manual(EIG, IG , OM),   Regulation Book,
    Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery
