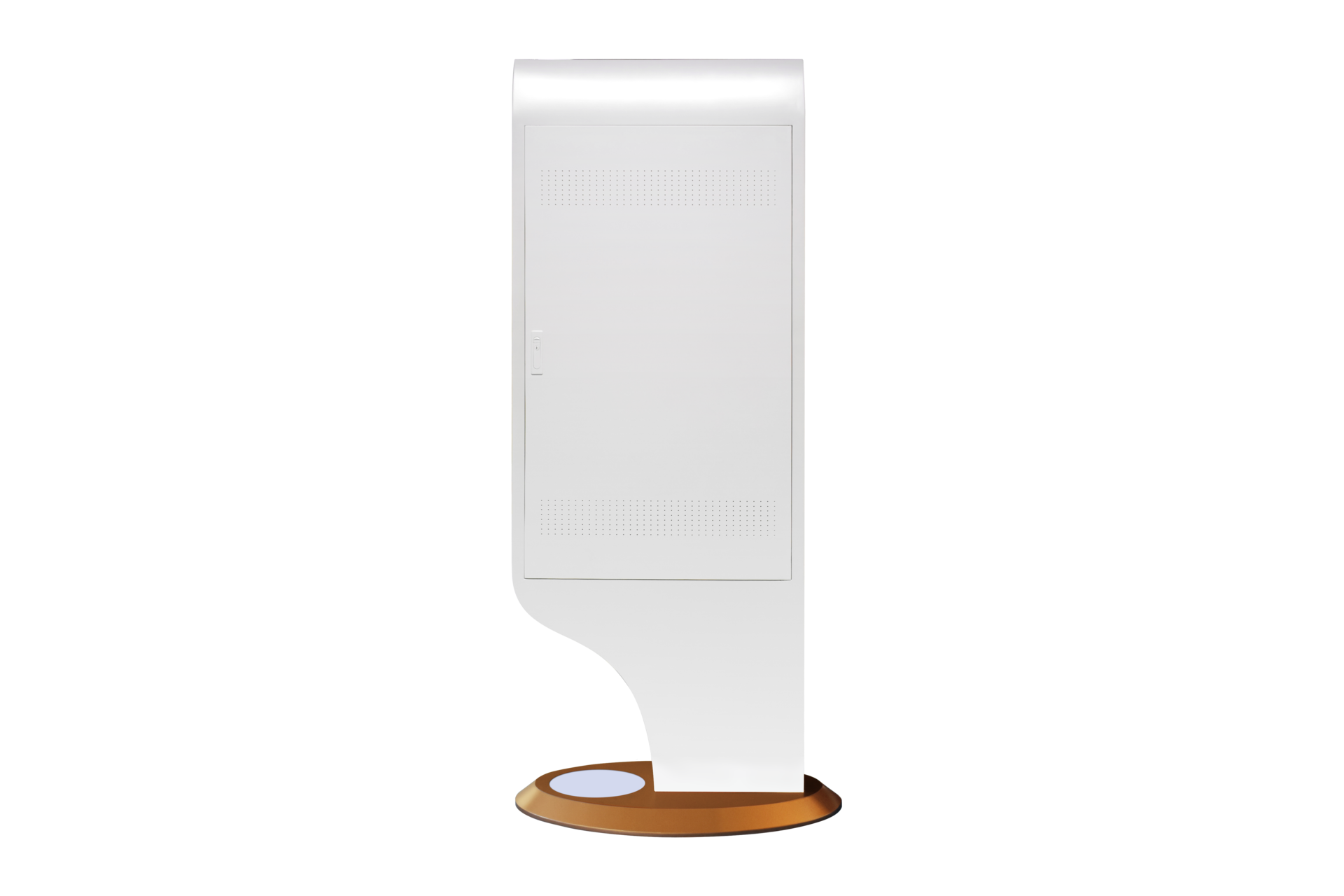

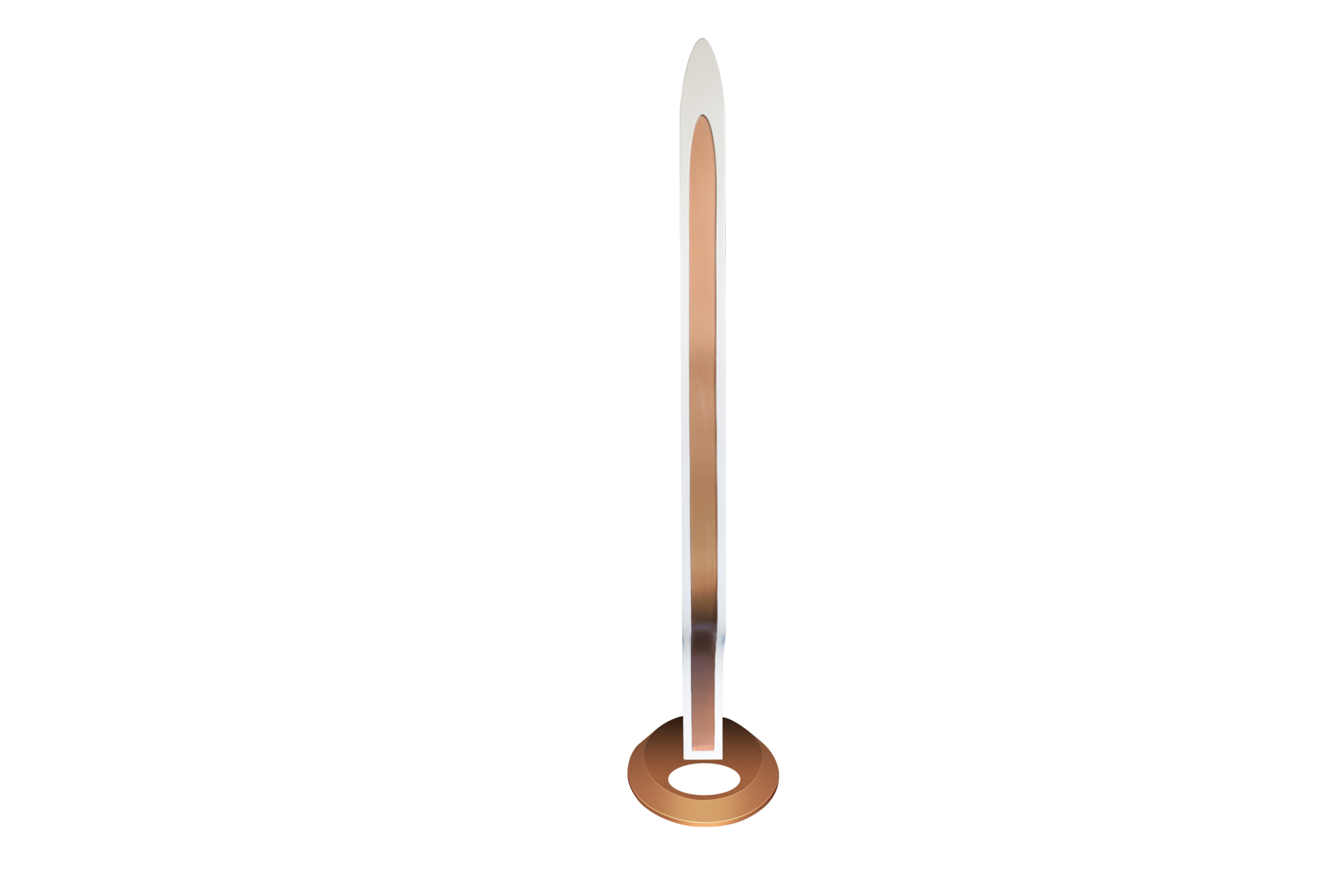

ARTMASTER-C100

Indoor Unique Design

Description

  • The Indoor totem Artmaster series with Unique appearance style designs and surface piano grade baking paint treatment are made from our new production line, it is equipped with a totally new style that Firefly Visual wants to recommend to our customers. Among the LCD advertising displays we have launched, this indoor totem Artmaster-A100 is inherited an entirely new design concept that design of the light on base is supplied. The supermarket, shopping mall, and the hospital shall be the targeted clients for this LCD advertising display and it deserves to be your initial choice.

Features

  • High-end shopping mall application
  • Excelusive design of fashinable models
  • All staninless steel material with surface piano grade baking paint treatment
  • Unique and elaborate surface treatment
  • Colored lamp on base is optional
  • Customized color is optinal

Available Size

       43″/49″55″/65″/75″


Operating enviromentOutdoor floor stand kioskSpecifications
OutdoorPANELDisplay55"65"75"86"
Screen Size
Panel TechnologyIPS,M+(WRGB)IPS,M+(WRGB)IPS,M+(WRGB)IPS,M+(WRGB)
Back light typeWLEDWLEDWLEDWLED
Asper Ratio16:0916:0916:0916:09
Native resdution1080*19202160*38402160*38402160*3840
Brightness2000~3000nits2000~3000nits2000~3000nits2000~2500nits
contrast Ratio1200:11200:11200:11200:1
Dynamic CRCR≥10CR≥10CR≥10CR≥10
Viewing Angle(H*V)178*178178*178178*178178*178
Response time6ms8ms8ms8ms
Surface Treatment(Haze.Quater Wave plate)(Haze 3%)，Hard coating (2H) (Haze 3%)，Hard coating (2H) (Haze 3%)，Hard coating (2H) (Haze 3%)，Hard coating (2H)
Life Time(Type)50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h
Operation Hours24h24h24h24h
Orientation Portrait & Landscape Portrait & Landscape Portrait & Landscape Portrait & Landscape
ConnectivityInputHDMI,  VGA, USB*2HDMI,DP,VGA,AUDIO,USBHDMI,DP,VGA,AUDIO,USBHDMI,DP,VGA,AUDIO,USB
OutputExternal Speaker Out(L/R)External Speaker Out(L/R)External Speaker Out(L/R)External Speaker Out(L/R)
External Control



PHYSICAL SPECIFICATIONProtection Glass 6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective) 6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective) 6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective) 6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)
Bezel ColorBlack/SilverBlack/SilverBlack/SilverBlack/Silver
KEY FEATURETemperature Sensor, Auto Brightness sensor
ENVIRONMENT CONDITIONSOperation Temperature.-20°C to 40 °C with fans;-30°C to 50 °C with air conditioner).-20°C to 40 °C with fans;-30°C to 50 °C with air conditioner).-20°C to 40 °C with fans;-30°C to 50 °C with air conditioner).-20°C to 40 °C with fans;-30°C to 50 °C with air conditioner)
Operation Humidity.-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing
POWERPower Supply 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz
Power TypeBuilt-In PowerBuilt-In PowerBuilt-In PowerBuilt-In Power
POWERCON SUMPTIONTyp./Max.2000nits260W/360W335W/520W390W/600W850W/1200W
2500nits320W/445W420W/580W490W/700W1000W/1450W
3000nits370W/510W480W/720W570W/800W
CERTIFICATIONSafetyPSEPSEPSEPSE
EMCPSE/VCCIPSE/VCCIPSE/VCCIPSE/VCCI
SOFTWARE COMPATIBILITYSuperSignYes(CMS, Control)Yes(CMS, Control)Yes(CMS, Control)Yes(CMS, Control)
