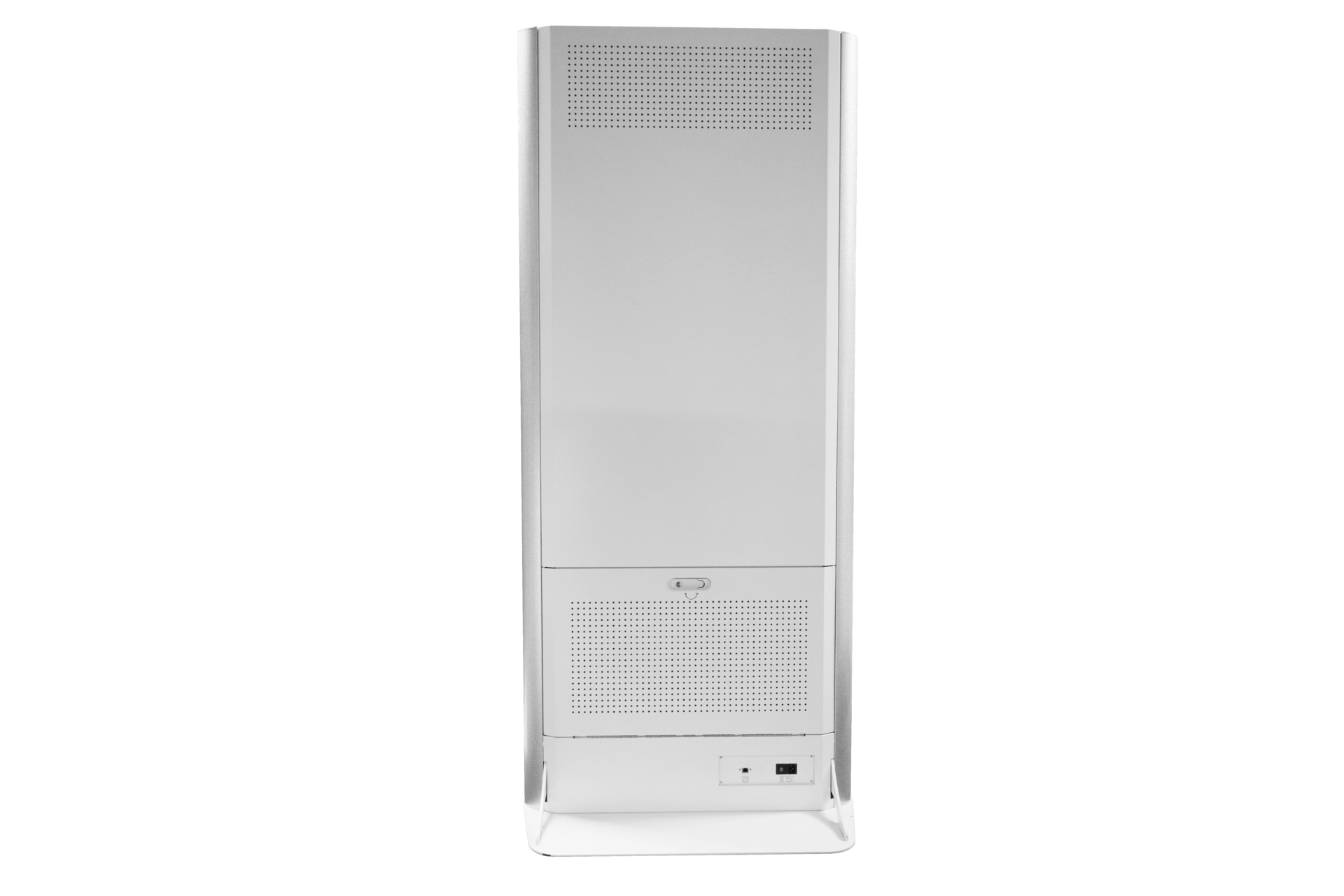

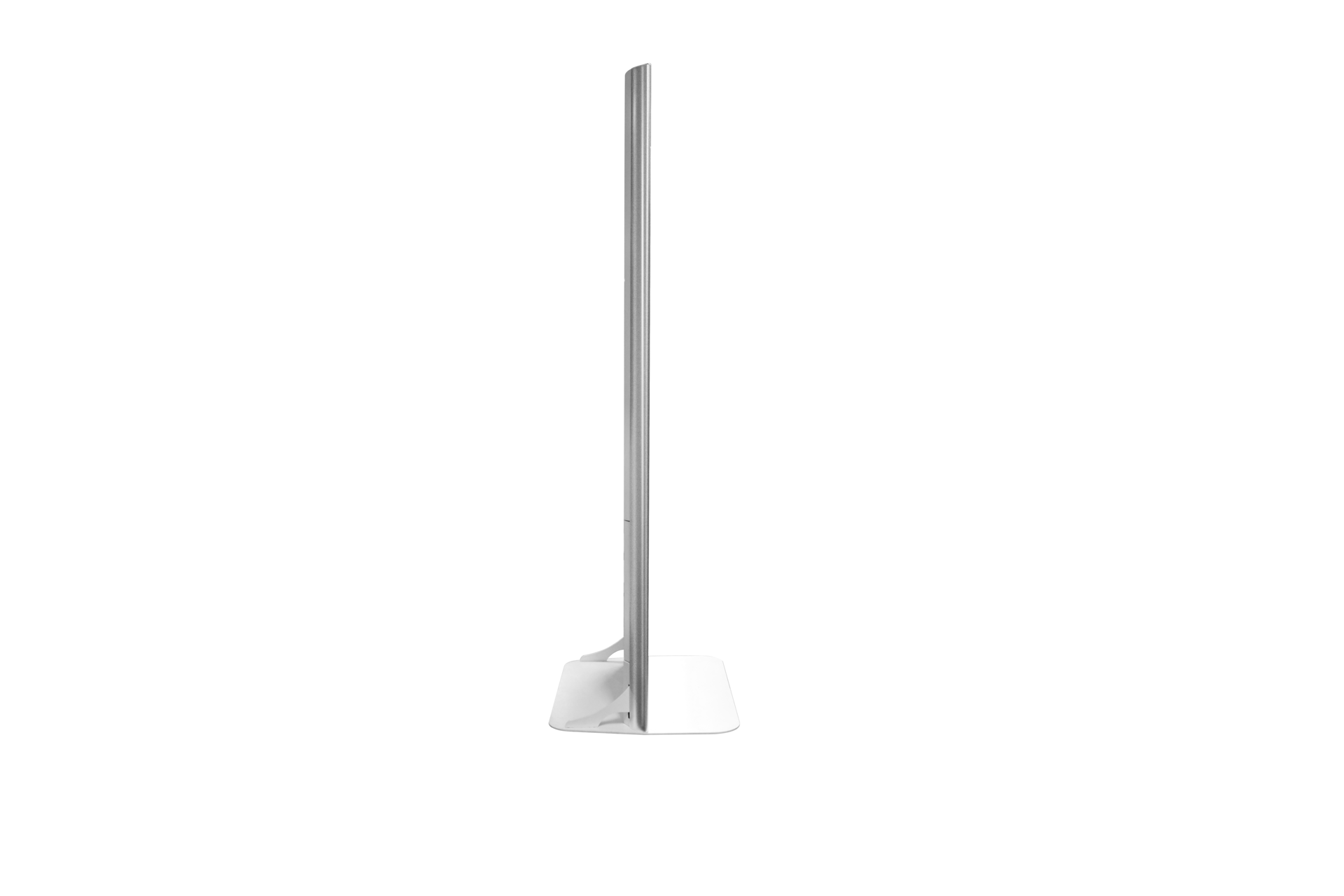

CLEARSIGHT-A100

INDOOR CLASSIC DESIGN

Description

  • The Indoor totem classic, a floor standing digital signage and LCD advertising display which is a product of new style launched in 2019 by Firefly Visual, is equipped with a side strip disign and light bar options aiming at supplying the most distinctive appearance design for customers to maintain. Given its extraordinary thickness of ultra-thin aluminium profile, LCD display panel Clearsight-A100 has been successfully welcomed in the shopping mall, hospital and banks. Common structure for multiple operating systems and optional side trip color design, Clearsight-A100  to be the most popular LCD displays among plentiful similar ones.

Features

  • Reinforced aluminum profile
  • Multiple touch screen selection
  • Open door design for easy maintenance
  • Side strip color design options

Reference Dimension

  • 65inch :W1003*H2245*T790mm


Operating enviromentIndoor totem classicSpecifications
IndoorPANELDisplay43"49"55"65"
Screen Size
Panel TechnologyIPS,M+(WRGB)IPS.M+(WRGB)IPS,M+(WRGB)IPS,M+(WRGB)
Back light typeWLEDWLEDWLEDWLED
Asper Ratio16:0916:0916:0916:09
Native resdution1080*19201080*19201080*19202160*3840
Brightness300~350nits300~350nits300~350nits300~350nits
contrast Ratio1200:11200:11200:11200:1
Dynamic CRCR≥10CR≥10CR≥10CR≥10
Viewing Angle(H*V)178*178178*178178*178178*178
Response time6ms6ms6ms8ms
Surface Treatment(Haze.Quater Wave plate)(Haze 1%)，Hard coating (3H)(Haze 1%)，Hard coating (3H) (Haze 3%)，Hard coating (2H) (Haze 3%)，Hard coating (2H)
Life Time(Type) 50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h
Operation Hours24h24h24h24h
Orientation Portrait & Landscape Portrait & Landscape Portrait & Landscape Portrait & Landscape
ConnectivityInput HDMI, DP, VGA, USB*2HDMI, VGA, USB*2HDMI,  VGA, USB*2HDMI,DP,VGA,AUDIO,USB
Output External Speaker Out(L/R)External Speaker Out(L/R)External Speaker Out(L/R)External Speaker Out(L/R)
External Control RS232C In/Out, RJ45(LAN) In/OutRJ45RJ45RJ45
PHYSICAL SPECIFICATIONProtection Glass 4mm( Degree of Protection, Tempered) 4mm( Degree of Protection, Tempered)4mm(IK 10, Degree of Protection, Tempered) 4mm( Degree of Protection, Tempered)
Bezel ColorSilverSilverSilverSilver
KEY FEATURENO system with HDMI input Optional Android or windows system
ENVIRONMENTCONDITIONSOperation Temperature0°C to 40 °C 0°C to 40 °C 0°C to 40 °C0°C to 40 °C
Operation Humidity.-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing
POWERPower Supply 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz
Power TypeBuilt-In PowerBuilt-In PowerBuilt-In PowerBuilt-In Power
POWERCONSUMPTIONTyp./Max.51W/73W50W/72W69W/99W68W/98W
SOFTWARECOMPATIBILITYSuperSignYes(CMS, Control)Yes(CMS, Control)Yes(CMS, Control)Yes(CMS, Control)
ACCESSORYBasicRemote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery
