LCD DIGITAL SIGNAGE SOLUTIONS

LCD SOLUTIONS

‹

›

‹

  • Clearsight-B100
  • Clearsight-B100
  • Clearsight-B100
  • Clearsight-B100
  • Clearsight-B100
  • Clearsight-B100
  • Clearsight-B100
  • Clearsight-B100

›

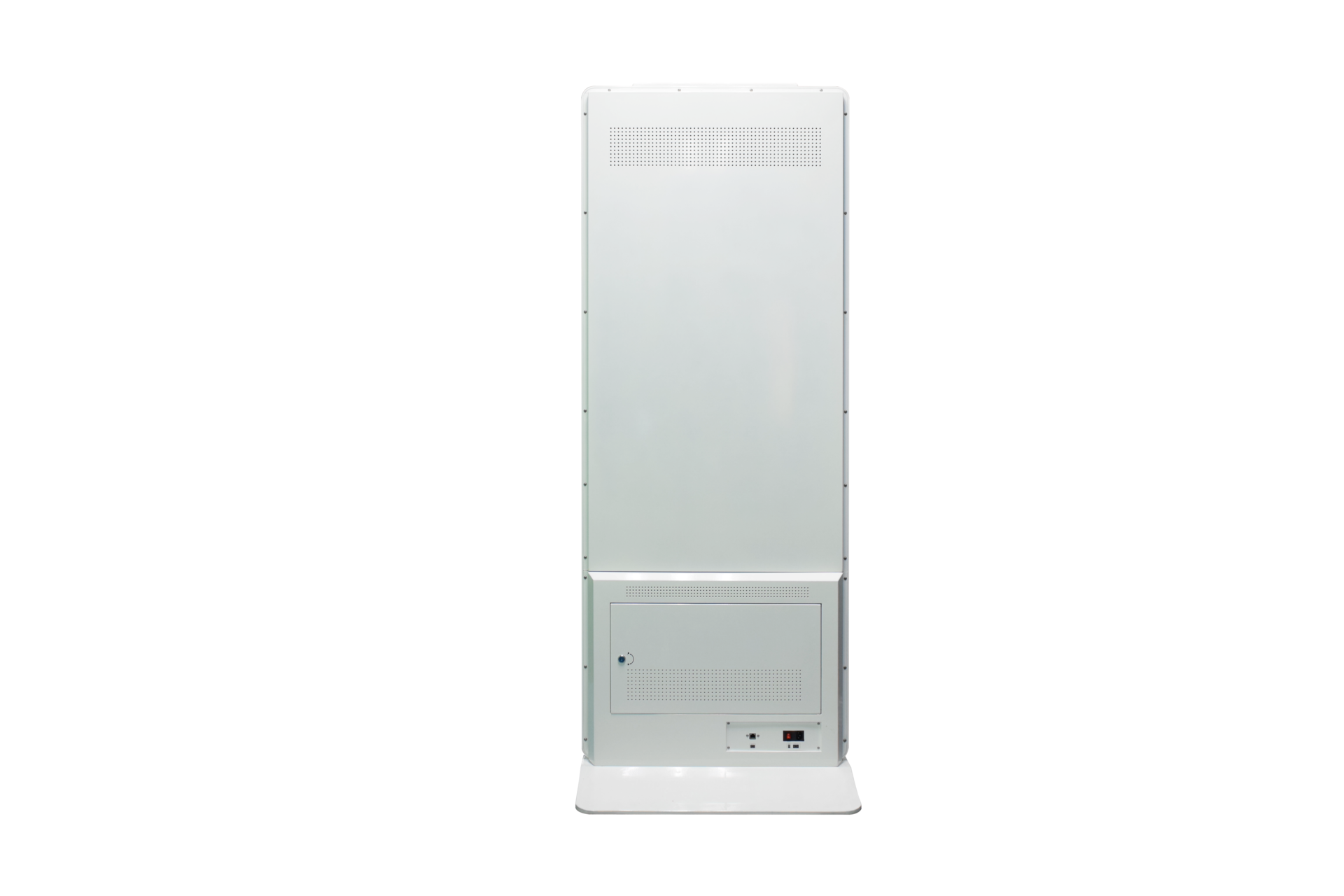

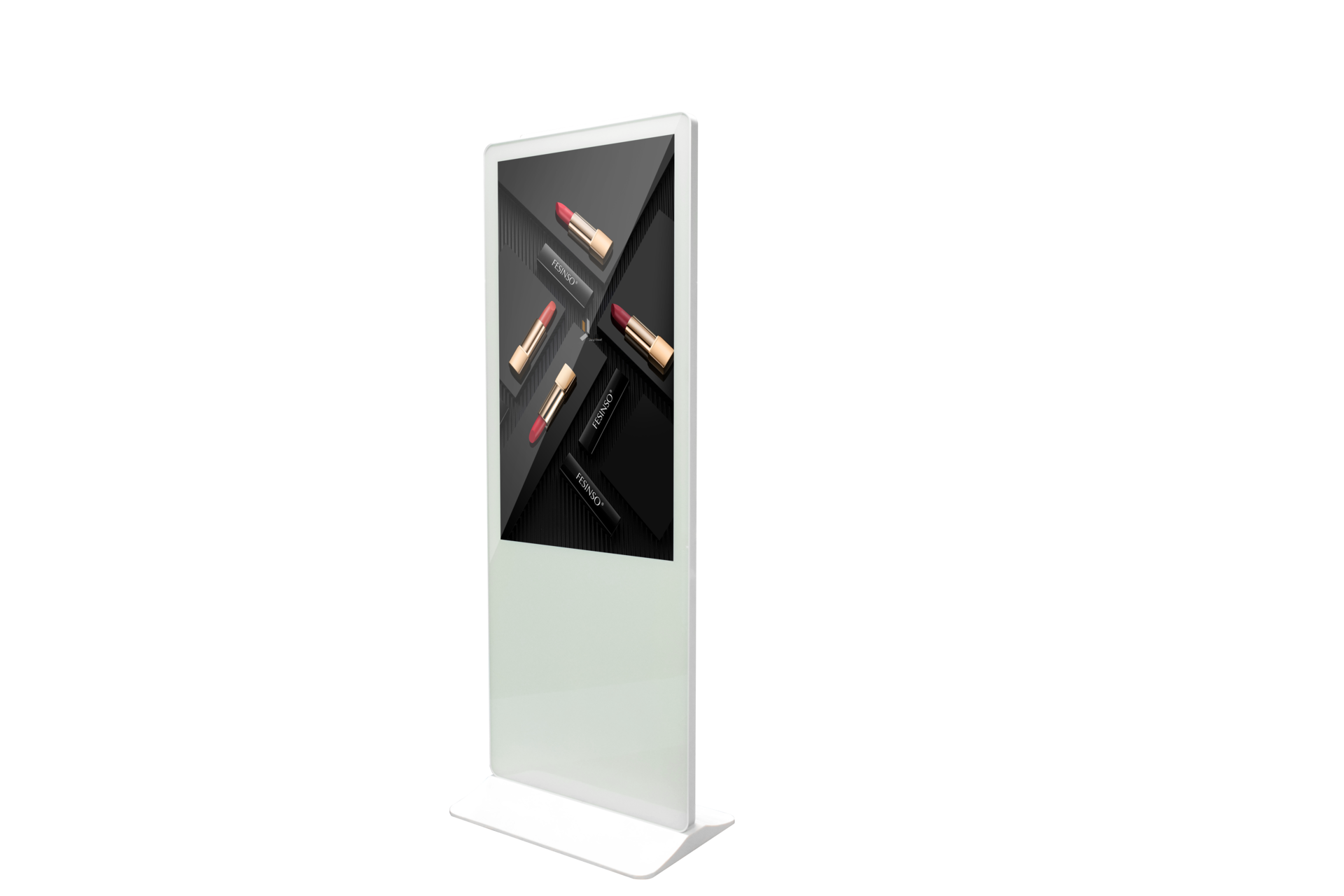

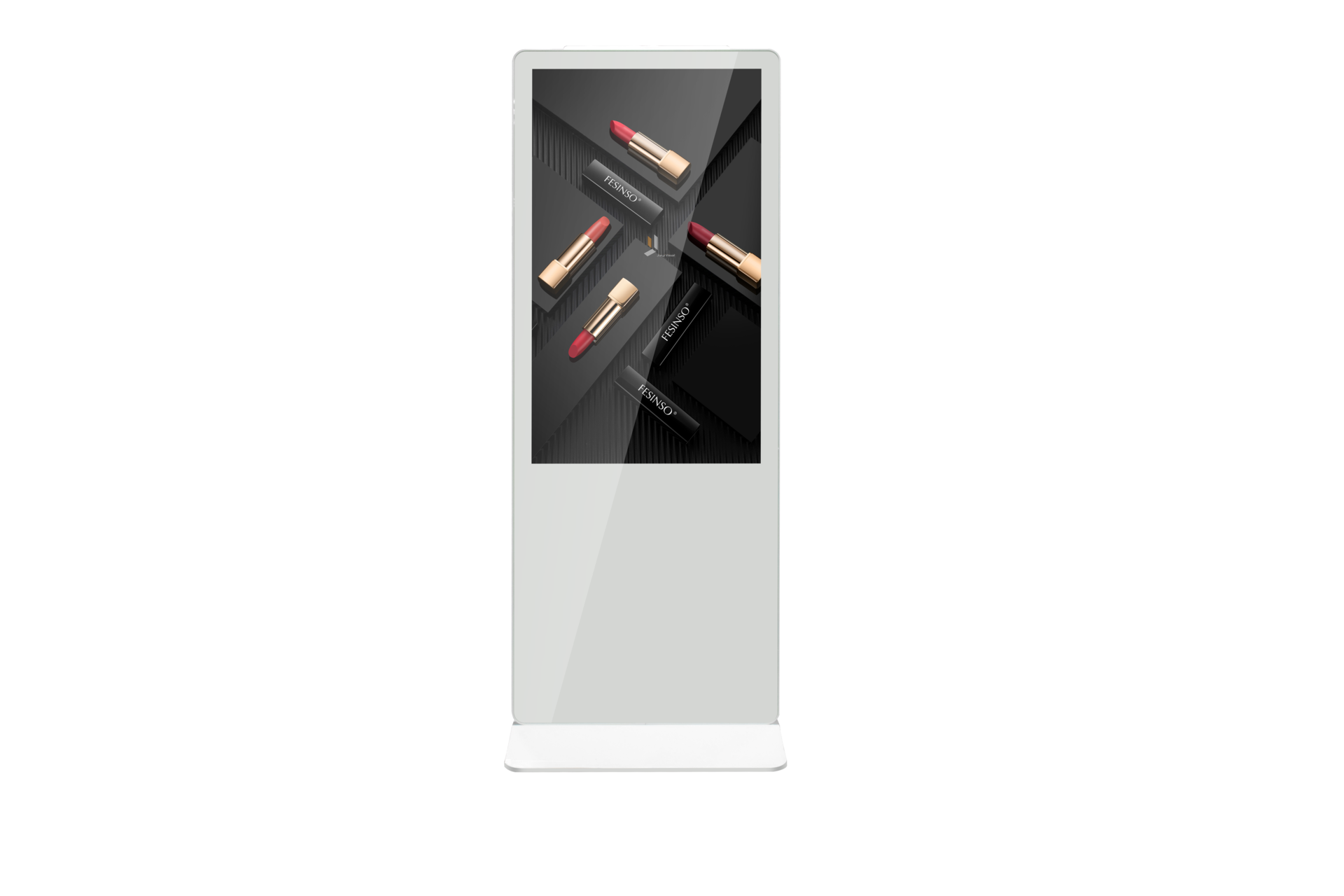

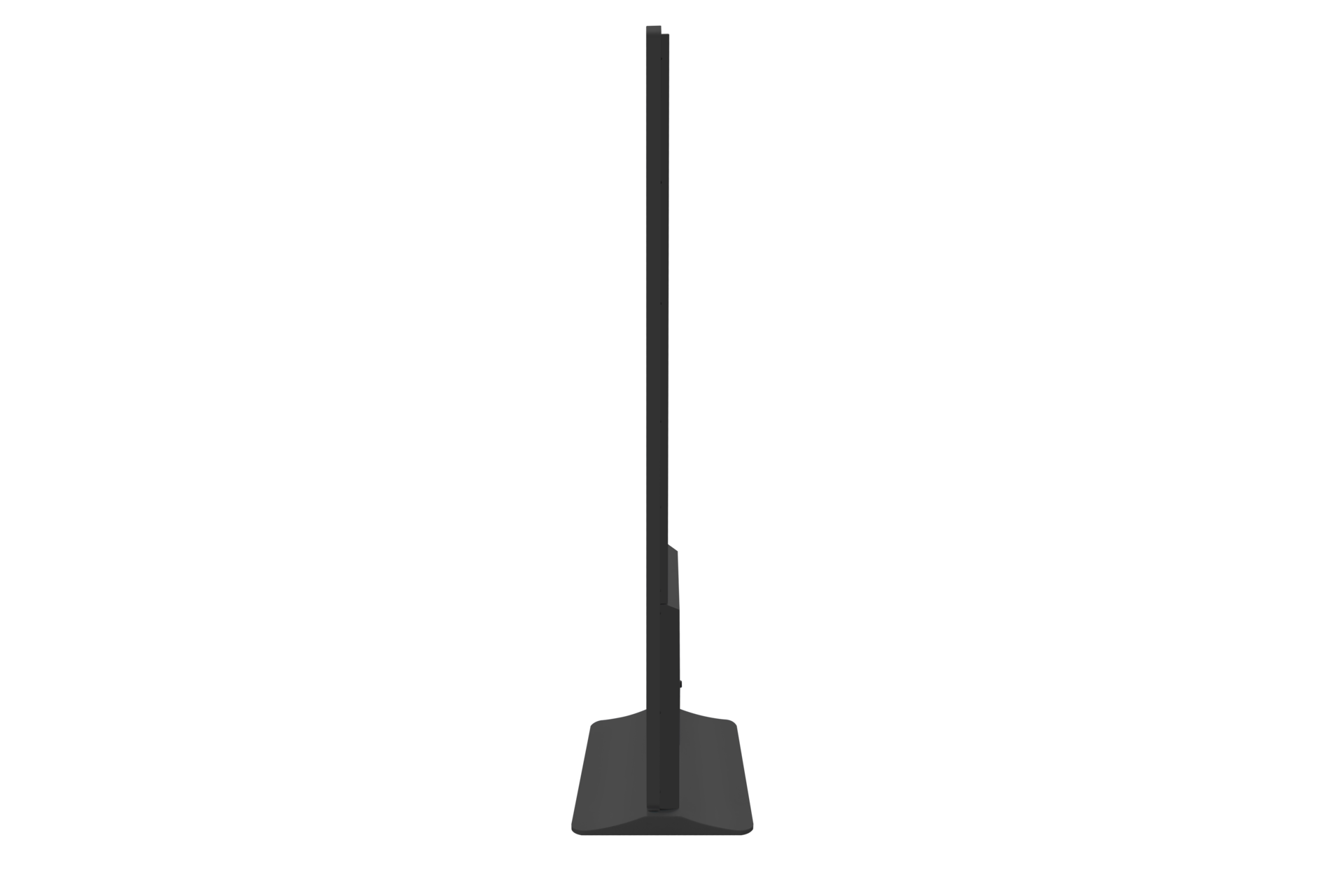

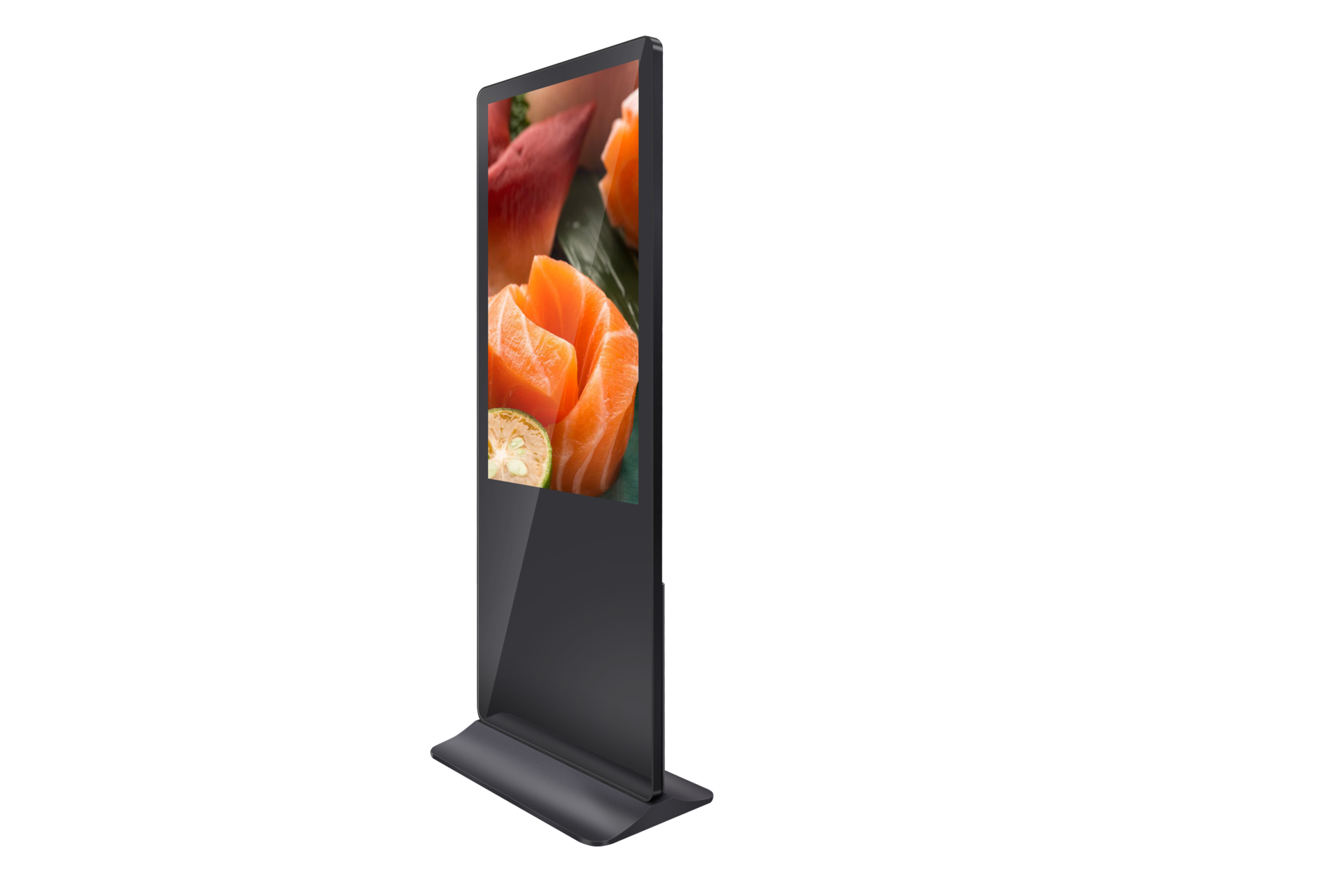

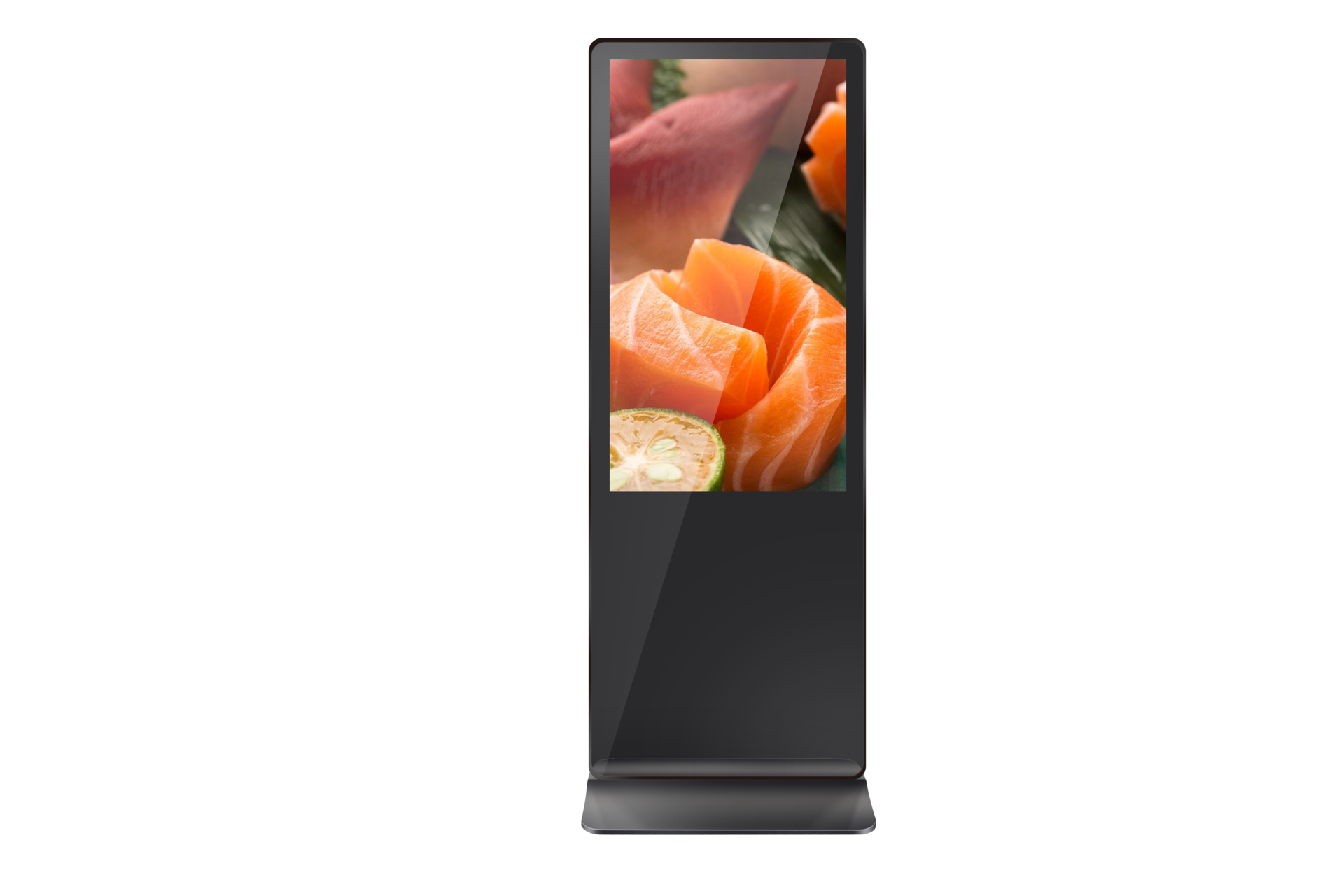

CLEARSIGHT-B100

Indoor Classic Design

Description

  • The Indoor totem classic series with different base and side style designs are made from the Innovative LCD manufacturer Firefly Visual, whose main product Clearsight-B100  is equipped with a totally new style that Firefly Visual pushing in 2019. Among the LCD advertising displays we have launched, this indoor totem Clearsight-B100  is inherited an entirely new design concept that design of the light bar on base is supplied. The supermarket, shopping mall, and the hospital shall be the targeted clients for this LCD advertising display and it deserves to be your initial choice.


  • Designed for the application of business occasion, Clearsight-B100 is able to work around the clock. With 700nits the IPS panel of Clearsight-B100 shines brighter than any indoor LCD display while delivering superior image&sound quality and color depth at 178° ultra-wide viewing angle in portrait orientation.

Features

  • Reinforced aluminum profile
  • Side stripe design
  • Reinforced base equipped
  • Lightbar options
  • The general structure for multiple operating systems

Reference Dimension

  • 55″:2021*800*80mm(H*W*D)
  • Base: 827*550mm(W*D)
Operating   enviromentIndoor totem   classicSpecifications
IndoorPANELDisplay43"49"55"65"
Screen Size
Panel TechnologyIPS,M+(WRGB)IPS.M+(WRGB)IPS,M+(WRGB)IPS,M+(WRGB)
Back light typeWLEDWLEDWLEDWLED
Asper Ratio9:169:169:169:16
Native resdution1080*19201080*19201080*19202160*3840
Brightness300/700/1000nits300/700/1000nits300/700/1000nits300/700/1000nits
contrast Ratio1200:11200:11200:11200:1
Dynamic CRCR≥10CR≥10CR≥10CR≥10
Viewing Angle(H*V)178*178178*178178*178178*178
Response time6ms6ms6ms8ms
Surface Treatment(Haze.Quater Wave plate)(Haze   1%)，Hard coating (3H)(Haze   1%)，Hard coating (3H) (Haze 3%)，Hard coating (2H) (Haze 3%)，Hard coating (2H)
Life Time(Type) 50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h
Operation Hours24h24h24h24h
Orientation Portrait & Landscape Portrait & Landscape Portrait & Landscape Portrait & Landscape
ConnectivityInput HDMI, DP, VGA, USB*2HDMI, VGA, USB*2HDMI,  VGA, USB*2HDMI,DP,VGA,AUDIO,USB
Output External Speaker Out(L/R)External Speaker   Out(L/R)External Speaker   Out(L/R)External Speaker   Out(L/R)
External ControlRJ45(LAN)   In/OutRJ45RJ45RJ45
PHYSICAL SPECIFICATIONProtection Glass4mm(Degree   of Protection, Tempered)4mm(Degree   of Protection, Tempered)4mm(Degree   of Protection, Tempered)4mm(Degree   of Protection, Tempered)
Bezel Colorwhitewhitewhitewhite
KEY FEATURENO   system with HDMI input Optional Android or windows system
ENVIRONMENT
    CONDITIONS		Operation Temperature0°C   to 40 °C 0°C   to 40 °C 0°C   to 40 °C 0°C   to 40 °C
Operation Humidity.-10°C   to 80 °C RH Non-condesing .-10°C   to 80 °C RH Non-condesing .-10°C   to 80 °C RH Non-condesing .-10°C   to 80 °C RH Non-condesing
POWERPower Supply 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz
Power TypeBuilt-In   PowerBuilt-In   PowerBuilt-In   PowerBuilt-In   Power
POWER
    CONSUMPTION		Typ./Max.105W/150W82W/117W121W/173W161W/230W
SOFTWARE
    COMPATIBILITY		SuperSignYes(CMS,   Control)Yes(CMS, Control)Yes(CMS, Control)Yes(CMS, Control)
ACCESSORYBasicRemote   Controller, Manual(EIG, IG , OM), Regulation Book,
    Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery
