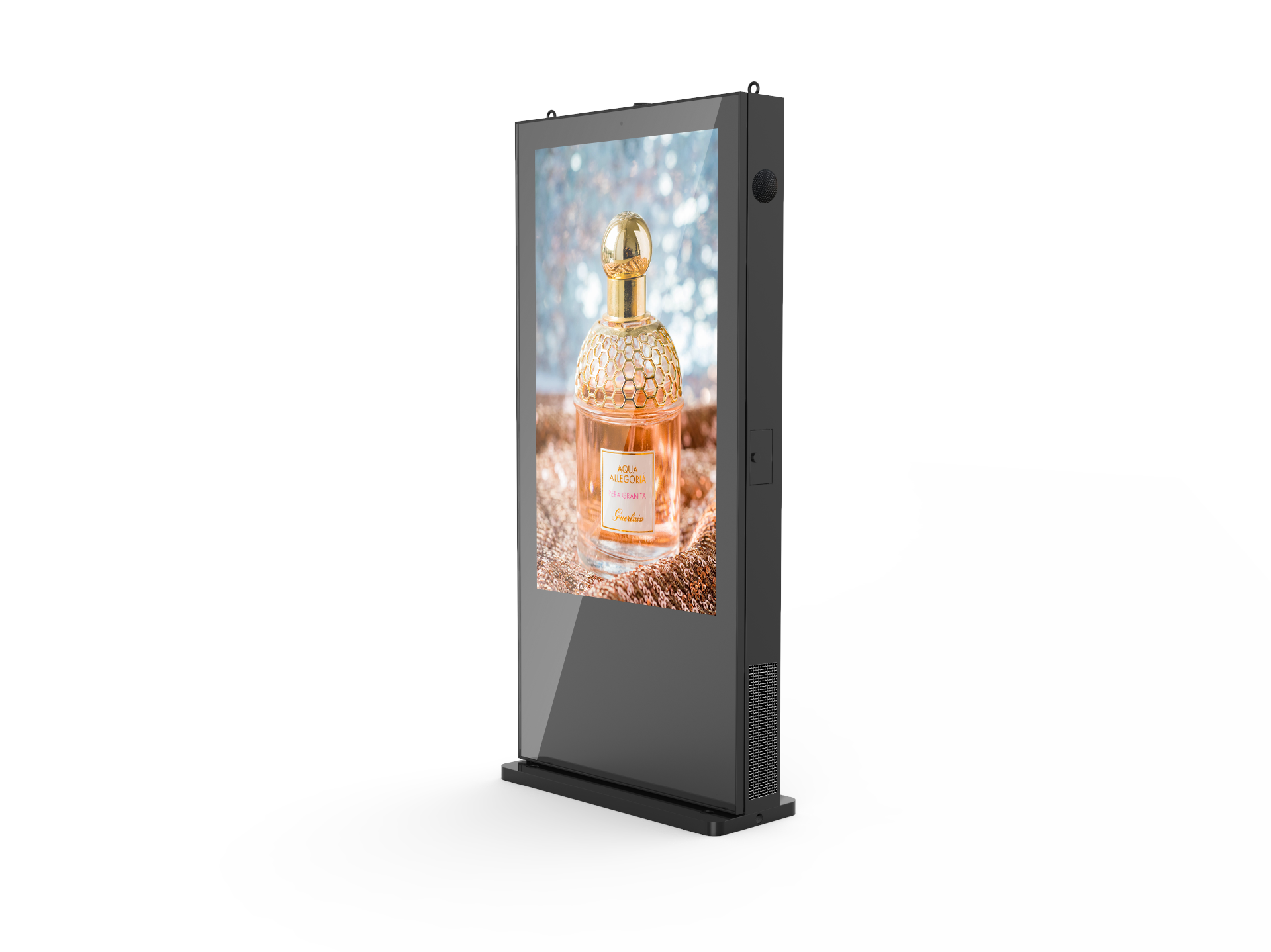

CLEARSIGHT-DS300

Description

  • The Indoor Dual Sided Kiosk, a floor standing digital signage and LCD advertising display Which is a product of new style launched in 2019 by Firefly Visual is equipped with a dual-screen and dual-door moved design on 2 sides, aiming at supplying the greatest convenience for customers to maintain. Given its extraordinary thickness of ultra-thin aluminium profile, LCD display panel version has been successfully welcomed in the shopping mall, hospital and banks. Both functions of identical or different contents on both screen and optional movable screen enlist the INDOOR DUAL-SIDED DS300 to be the most popular LCD displays among plentiful similar ones.

Features

  • Identical or different contents on both screens
  • Multiple touch screen selection

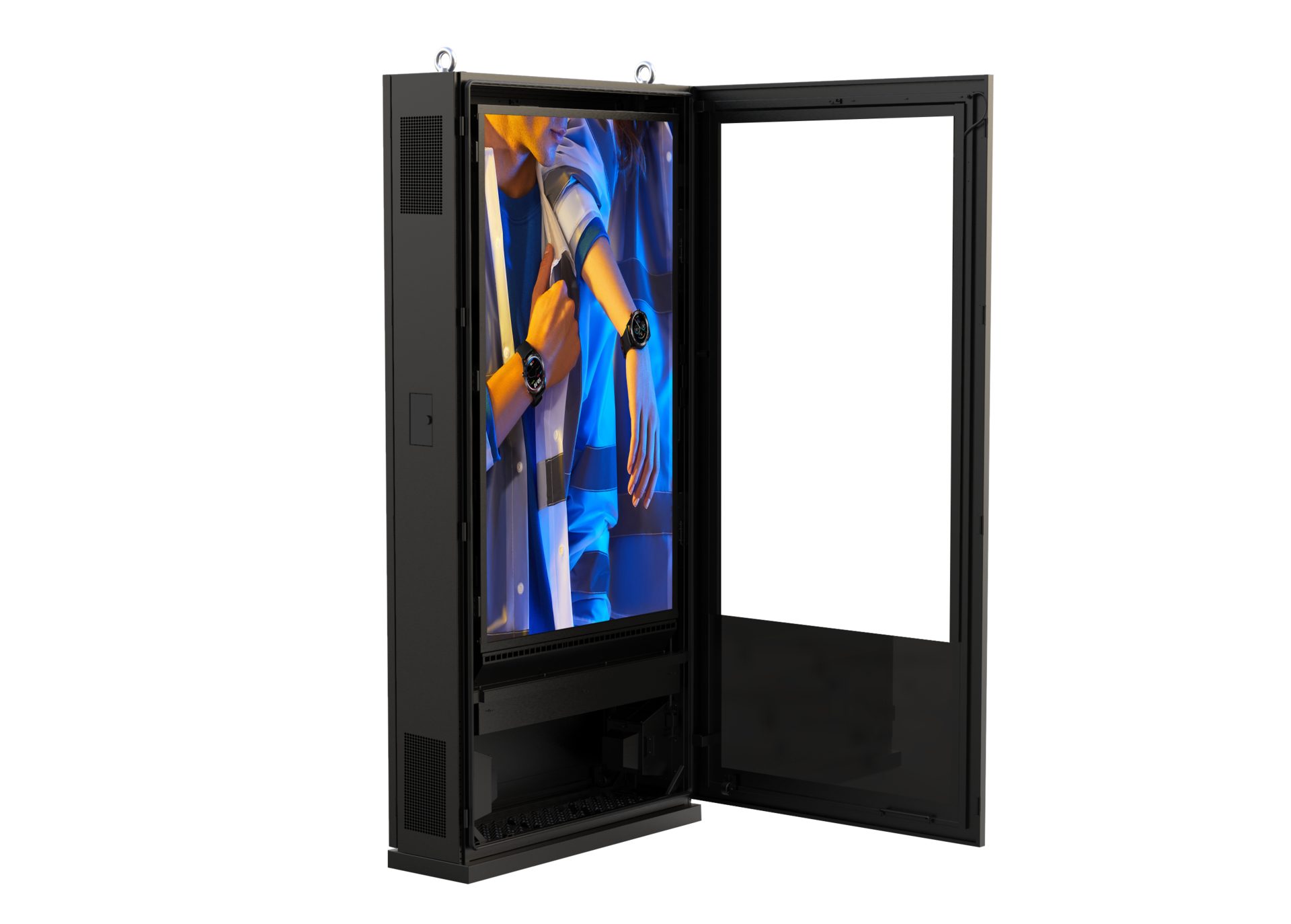

  • Open door design for easy maintenance
  • Movable screen design is optional

Reference Dimension

  • 55″: 1930*840*143mm(H*W*D)
  • Base: 840*400(W*D)



Operating enviromentIndoor dual sided kioskSpecifications
IndoorPANELDisplay43"49"55"65"
Screen Size
Panel TechnologyIPS,M+(WRGB)IPS.M+(WRGB)IPS,M+(WRGB)IPS,M+(WRGB)
Back light typeWLEDWLEDWLEDWLED
Asper Ratio16:0916:0916:0916:09
Native resdution1920*10801920*10801920*10803840*2160
Brightness350nits350nits350nits350nits
contrast Ratio1200:11200:11200:11200:1
Dynamic CRCR≥10CR≥10CR≥10CR≥10
Viewing Angle(H*V)178*178178*178178*178178*178
Response time6ms6ms6ms8ms
Surface Treatment(Haze.Quater Wave plate)(Haze 1%)，Hard coating (3H)(Haze 1%)，Hard coating (3H) (Haze 3%)，Hard coating (2H) (Haze 3%)，Hard coating (2H)
Life Time(Type) 50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h
Operation Hours24h24h24h24h
Orientation Portrait & Landscape Portrait & Landscape Portrait & Landscape Portrait & Landscape
ConnectivityInput HDMI, DVI, VGA,HDMI, DVI,VGA, HDMI, DVI, VGA, HDMI,DP,VGA,AUDIO,USB
Output External Speaker Out(L/R)External Speaker Out(L/R)External Speaker Out(L/R)External Speaker Out(L/R)
PHYSICAL SPECIFICATIONProtection Glass 4mm( Degree of Protection, Tempered) 4mm( Degree of Protection, Tempered) 4mm( Degree of Protection, Tempered) 4mm( Degree of Protection, Tempered)
Bezel ColorSilverSilverSilverSilver
KEY FEATURENO system with HDMI input Optional Android or windows system
ENVIRONMENTCONDITIONSOperation Temperature0°C to 40 °C 0°C to 40 °C 0°C to 40 °C 0°C to 40 °C
Operation Humidity.-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing
POWERPower Supply 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz
Power TypeBuilt-In PowerBuilt-In PowerBuilt-In PowerBuilt-In Power
POWERCONSUMPTIONTyp./Max.51W/73W50W/72W69W/99W83W/118W
SOFTWARECOMPATIBILITYSuperSign



ACCESSORYBasic
