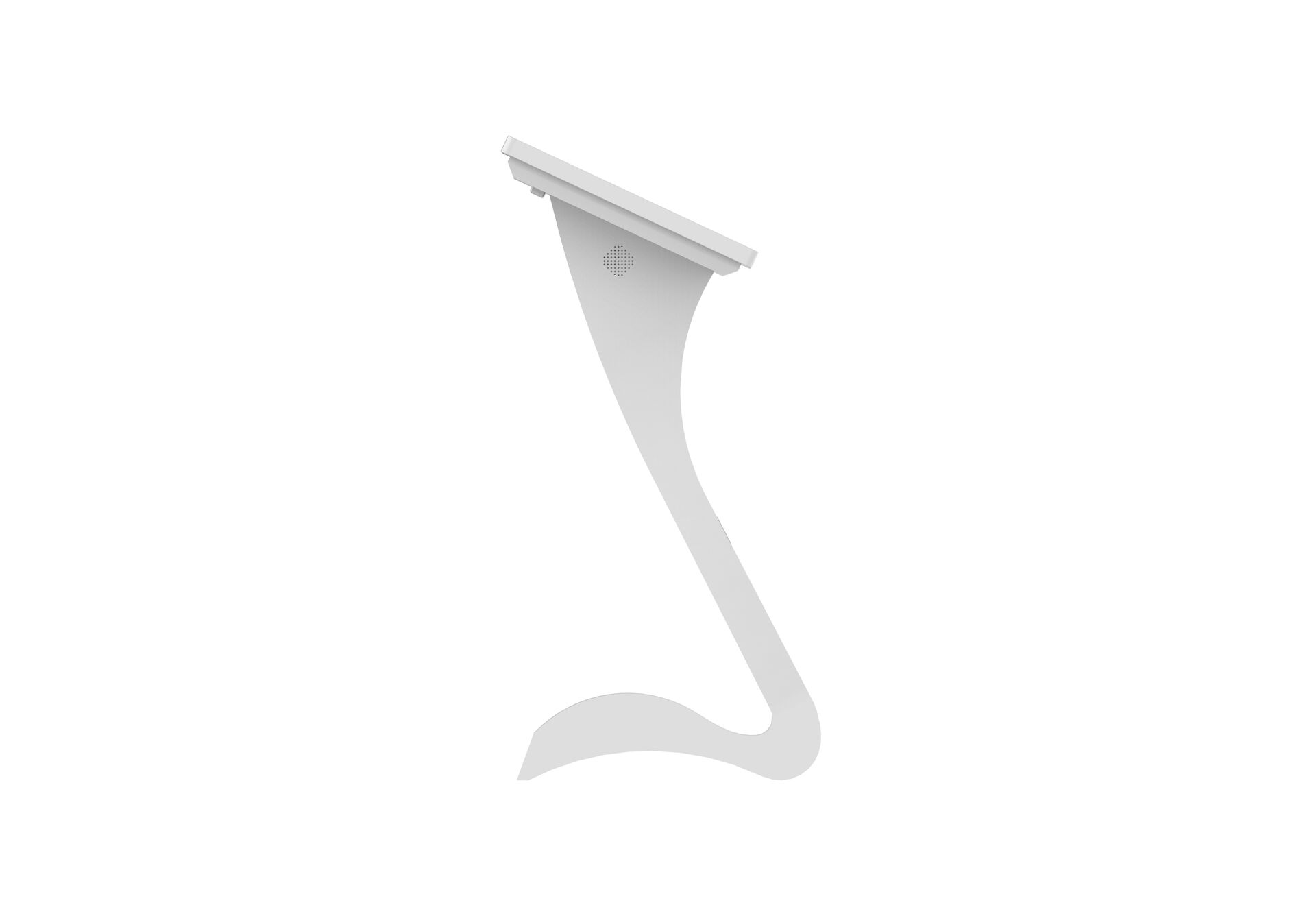

Shopview-B100

Information board

Description

  • 4 styles of diverse fashion design are optional in the interactive touch kiosk. Users are allowed to choose a suitable style to satisfy their own requirements. As a touch screen LCD display and LCD Interactive screen, this INDOOR INTERACTIVE TOUCH KIOSK-Shopview-B100 are supported great functions of the high compatible system and wayfinding application solution, which is going to fit in the shopping mall, office block, and hospital beautifully, looking to prevent complicate procedures for clients.


  • This IR touch screen is developed to offer convenience for users via its unique function of interface including the 10 points touch and IPS displays. Furthermore, its impeccable smooth radian is suitable for the tremendous super market whose location is a high-end line.

Features

  • Perfect smooth radian
  • Reinforced base
  • Sensitive multi-touch screen
  • High compatible system
  • Wayfinding application solution

Reference Dimension

  • 32″:1101*&780*521MM
  • 43″: 1152*1030*521MM
  • 49″: 1140*1180*1140mm




Operating enviromentIndoor interactive kioskSpecifications
IndoorPANELDisplay32"43"
Screen Size
Panel TechnologyIPS,M+(WRGB)IPS,M+(WRGB)
Back light typeWLEDWLED
Asper Ratio16:09:0016:09
Native resdution1920*10801920*1080
Brightness350nits350nits
contrast Ratio.1200:11200:1
Dynamic CRCR≥10CR≥10
Viewing Angle(H*V)178*178178*178
Response time6ms6ms
Surface Treatment(Haze.Quater Wave plate)(Haze 1%)，Hard coating (3H)(Haze 1%)，Hard coating (3H)
Life Time(Type) 50,000 h - 60000 h 50,000 h - 60000 h
Operation Hours24h24h
Orientation Portrait & Landscape Portrait & Landscape
ConnectivityInput USBUSB
Output External Speaker Out(L/R) External Speaker Out(L/R)
External ControlRJ45RJ45
PHYSICAL SPECIFICATIONProtection Glass 4mm( Degree of Protection, Tempered) 4mm( Degree of Protection, Tempered)
Bezel Colorblack/whiteblack/white
KEY FEATURENO system with HDMI input Optional Android or windows system
ENVIRONMENTCONDITIONSOperation Temperature0°C to 40 °C 0°C to 40 °C
Operation Humidity.-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing
POWERPower Supply 100-240V~, 50/60Hz 100-240V~, 50/60Hz
Power TypeBuilt-In PowerBuilt-In Power
POWERCONSUMPTIONTyp./Max.66W/94W51W/73W
SOFTWARECOMPATIBILITYSuperSignYes(CMS, Control)Yes(CMS, Control)
ACCESSORYBasicRemote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery
