LCD DIGITAL SIGNAGE SOLUTIONS

LCD SOLUTIONS

‹

›

‹

  • Artmaster-B100
  • Artmaster-B100
  • Artmaster-B100

›

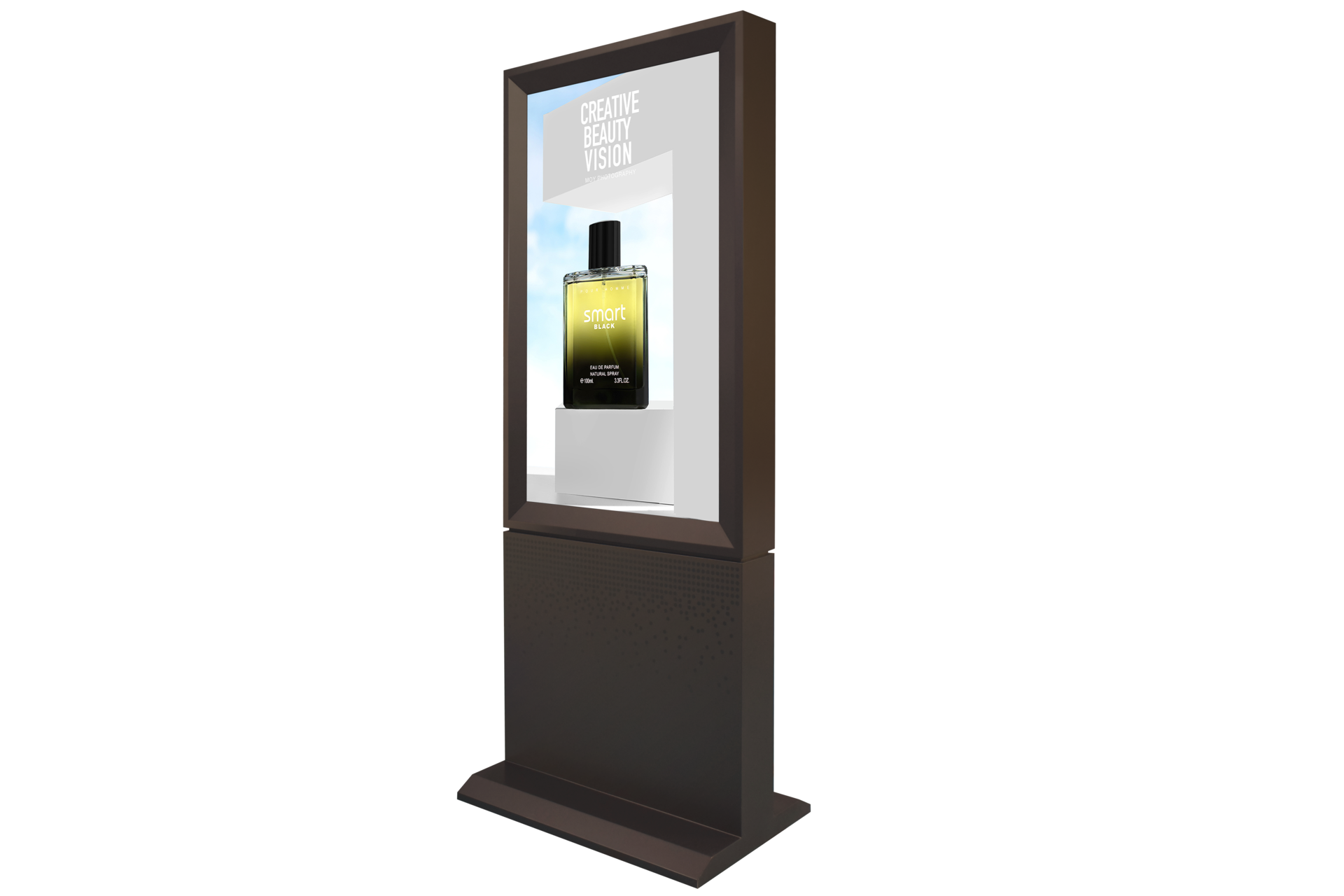

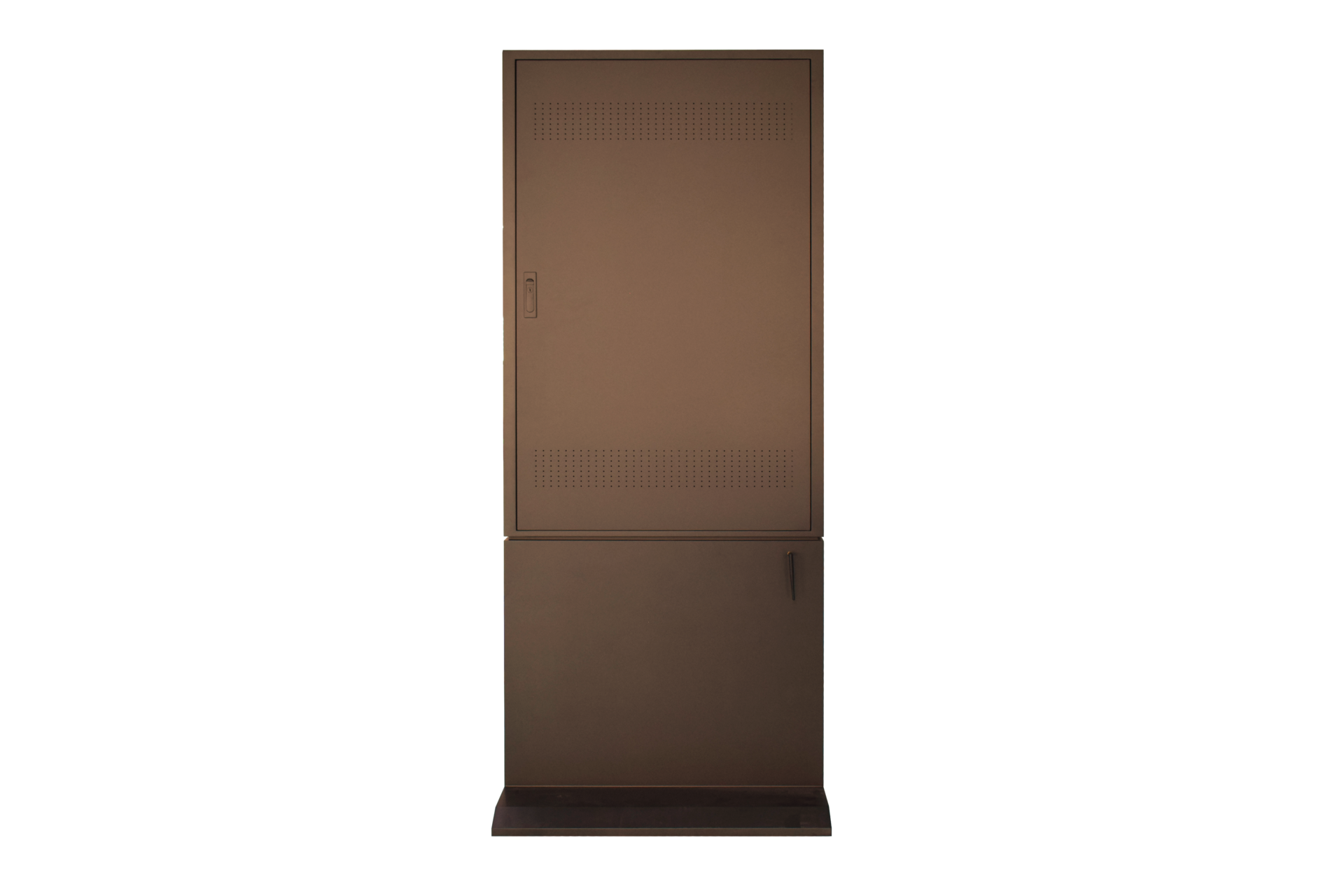

ARTMASTER-B100

Indoor Unique Design

Description

  • The Indoor totem classic series with different base and side style designs are made from some customer concept, our main product of Artmaster-B100 is equipped with a totally new style that Firefly Visual pushing in 2020. Among the LCD advertising displays we have launched, this indoor totem  is inherited an entirely new design concept that design of the light bar on base is supplied. The supermarket, shopping mall, and the hospital shall be the targeted clients for this LCD advertising display and it deserves to be your initial choice.
  • Designed for the application of business occasion, Artmaster-B100 is able to work around the clock. With 700nits the IPS panel of Artmaster-B100 shines brighter than any indoor LCD display while delivering superior image&sound quality and color depth at 178° ultra-wide viewing angle in portrait orientation.

Features

  • High-end shopping mall application
  • Exclusive design of fashionable models
  • All staninless steel material with surface plano grade baking paint treatment
  • Unique and elaborate surface treatment
  • Colored lamp on base is optional
  • Customized color is optiona

Available Size

   32″/43″/49″/55″/65″/75″


Operating enviromentIndoor totem 2020 seriesSpecifications
IndoorPANELDisplay43"49"
Screen Size
Panel TechnologyIPS,M+(WRGB)IPS.M+(WRGB)
Back light typeWLEDWLED
Asper Ratio16:0916:09
Native resdution1080*19201080*1920
Brightness300~350nits300~350nits
contrast Ratio1200:11200:1
Dynamic CRCR≥10CR≥10
Viewing Angle(H*V)178*178178*178
Response time6ms6ms
Surface Treatment(Haze.Quater Wave plate)(Haze 1%)，Hard coating (3H)(Haze 1%)，Hard coating (3H)
Life Time(Type) 50,000 h - 60000 h50,000 h - 60000 h
Operation Hours24h24h
Orientation Portrait & Landscape Portrait & Landscape
ConnectivityInputAUDIOAUDIO
Output External Speaker Out(L/R) HDMI， External Speaker Out(L/R) HDMI，
External ControlRJ45(LAN) In/OutRJ45(LAN) In/Out
PHYSICAL SPECIFICATIONProtection Glass4mm( Degree of Protection, Tempered)4mm( Degree of Protection, Tempered)
Bezel ColorBlackBlack
KEY FEATURENO system with HDMI input Optional Android or windows system
ENVIRONMENTCONDITIONSOperation Temperature0°C to 40 °C 0°C to 40 °C
Operation Humidity.-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing
POWERPower Supply 100-240V~, 50/60Hz 100-240V~, 50/60Hz
Power TypeBuilt-In PowerBuilt-In Power
POWERCONSUMPTIONTyp./Max.51W/73W50W/72W
SOFTWARECOMPATIBILITYSuperSignYes(CMS, Control)
ACCESSORYBasicRemote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery
