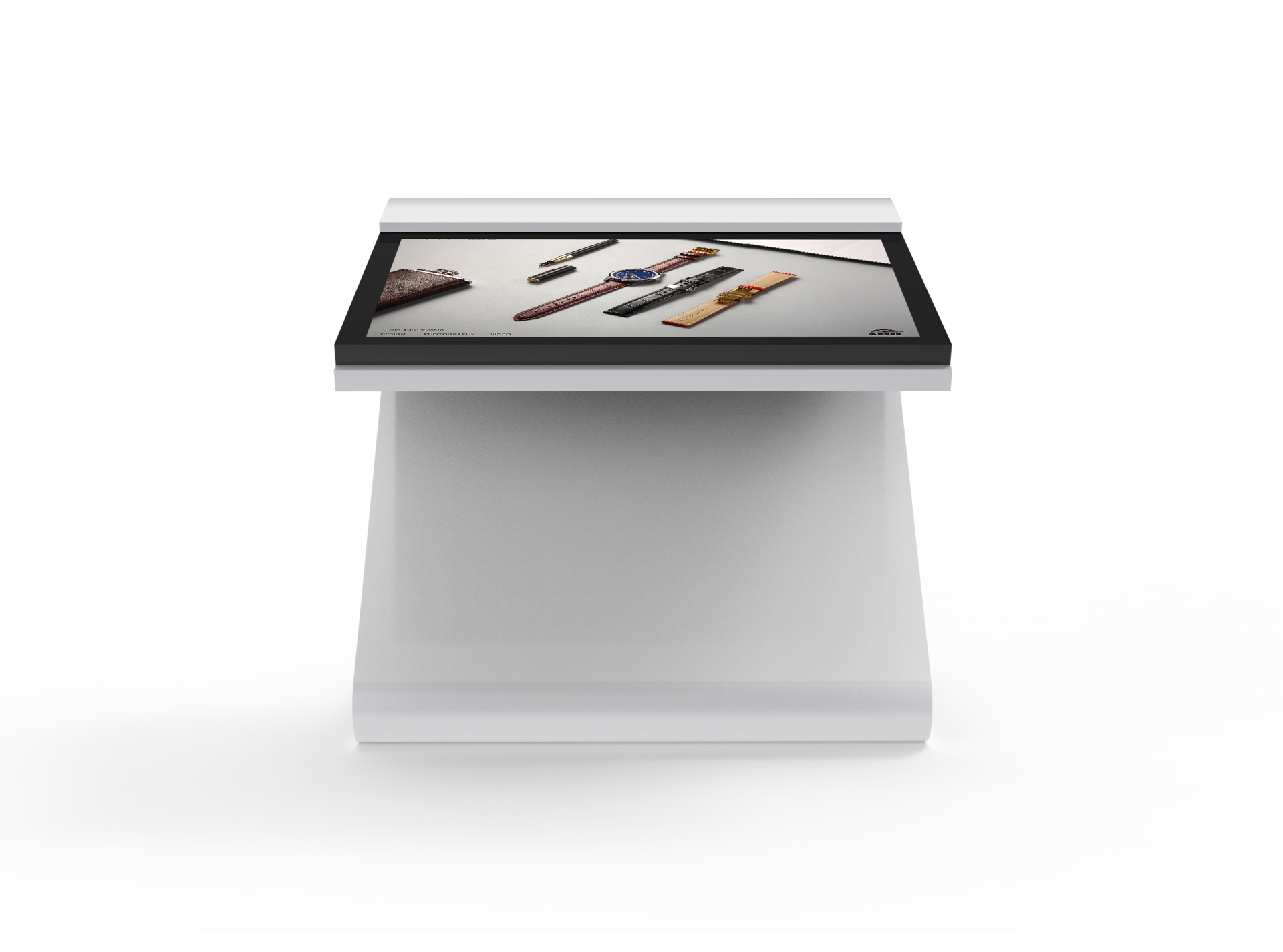

Shopview-D100

Information board

Description

4 styles of diverse fashion design are optional in the interactive touch kiosk. Users are allowed to choose a suitable style to satisfy their own requirements. As a touch screen LCD display and LCD Interactive screen, this INDOOR INTERACTIVE TOUCH KIOSK-Shopview-D100 are supported great functions of the high compatible system and wayfinding application solution, which is going to fit in the shopping mall, office block, and hospital beautifully, looking to prevent complicate procedures for clients.
This IR touch screen is developed to offer convenience for users via its unique function of interface including the 10 points touch and IPS displays. Furthermore, its impeccable smooth radian is suitable for the tremendous super market whose location is a high-end line.

Features

Perfect smooth radian
Reinforced base
Sensitive multi-touch screen
High compatible system
Wayfinding application solution

Reference Dimension

32″:1101*&780*521MM
43″: 1152*1030*521MM
49″: 1140*1180*1140mm

Operating enviroment	Indoor interactive kiosk	Specifications
Indoor	PANEL	Display	32"	43"	49"	55"	65"	75"
		Screen Size	32"	43"	49"	55"	65"	75"
		Panel Technology	IPS,M+(WRGB)	IPS,M+(WRGB)	IPS.M+(WRGB)	IPS,M+(WRGB)	IPS,M+(WRGB)	IPS,M+(WRGB)
		Back light type	WLED	WLED	WLED	WLED	WLED	WLED
		Asper Ratio	16:09:00	16:09	16:09	16:09	16:09	16:09
		Native resdution	1920*1080	1920*1080	1920*1080	1920*1080	3840*2160	2160*3840
		Brightness	350nits	350nits	350nits	350nits	350nits	2000~3000nits
		contrast Ratio	.1200:1	1200:1	1200:1	1200:1	1200:1	1200:1
		Dynamic CR	CR≥10	CR≥10	CR≥10	CR≥10	CR≥10	CR≥10
		Viewing Angle(H*V)	178*178	178*178	178*178	178*178	178*178	178*178
		Response time	6ms	6ms	6ms	6ms	8ms	8ms
		Surface Treatment(Haze.Quater Wave plate)	(Haze 1%)，Hard coating (3H)	(Haze 1%)，Hard coating (3H)	(Haze 1%)，Hard coating (3H)	(Haze 3%)，Hard coating (2H)	(Haze 3%)，Hard coating (2H)	(Haze 3%)，Hard coating (2H)
		Life Time(Type)	50,000 h - 60000 h	50,000 h - 60000 h	50,000 h - 60000 h	50,000 h - 60000 h	50,000 h - 60000 h	50,000 h - 60000 h
		Operation Hours	24h	24h	24h	24h	24h	24h
		Orientation	Portrait & Landscape	Portrait & Landscape	Portrait & Landscape	Portrait & Landscape	Portrait & Landscape	Portrait & Landscape
	Connectivity	Input	HDMI, DVI, VGA,	HDMI, DVI, VGA,	HDMI, DVI,VGA,	HDMI, DVI, VGA,	HDMI,DP,VGA,AUDIO,USB	HDMI,DP,VGA,AUDIO,USB
		Output	External Speaker Out(L/R)	External Speaker Out(L/R)	External Speaker Out(L/R)	External Speaker Out(L/R)	External Speaker Out(L/R)	External Speaker Out(L/R)
		External Control	RJ45	RJ45	RJ45	RJ45	RJ45	RJ45
	PHYSICAL SPECIFICATION	Protection Glass	4mm(Degree of Protection, Tempered)	4mm(Degree of Protection, Tempered)	4mm(Degree of Protection, Tempered)	4mm(Degree of Protection, Tempered)	4mm(Degree of Protection, Tempered)	4mm(Degree of Protection, Tempered)
	KEY FEATURE	NO system with HDMI input Optional Android or windows system
	ENVIRONMENTCONDITIONS	Operation Temperature	0°C to 40 °C	0°C to 40 °C	0°C to 40 °C	0°C to 40 °C	0°C to 40 °C	0°C to 40 °C
	ENVIRONMENTCONDITIONS	Operation Humidity	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing
	POWER	Power Supply	100-240V~, 50/60Hz	100-240V~, 50/60Hz	100-240V~, 50/60Hz	100-240V~, 50/60Hz	100-240V~, 50/60Hz	100-240V~, 50/60Hz
	POWER	Power Type	Built-In Power	Built-In Power	Built-In Power	Built-In Power	Built-In Power	Built-In Power
	POWERCONSUMPTION	Typ./Max.	50W/72W	51W/73W	50W/72W	69W/99W	83W/118W	193W/276W
	SOFTWARECOMPATIBILITY	SuperSign	Yes(CMS, Control)	Yes(CMS, Control)	Yes(CMS, Control)	Yes(CMS, Control)	Yes(CMS, Control)	Yes(CMS, Control)
	ACCESSORY	Basic	Remote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery
