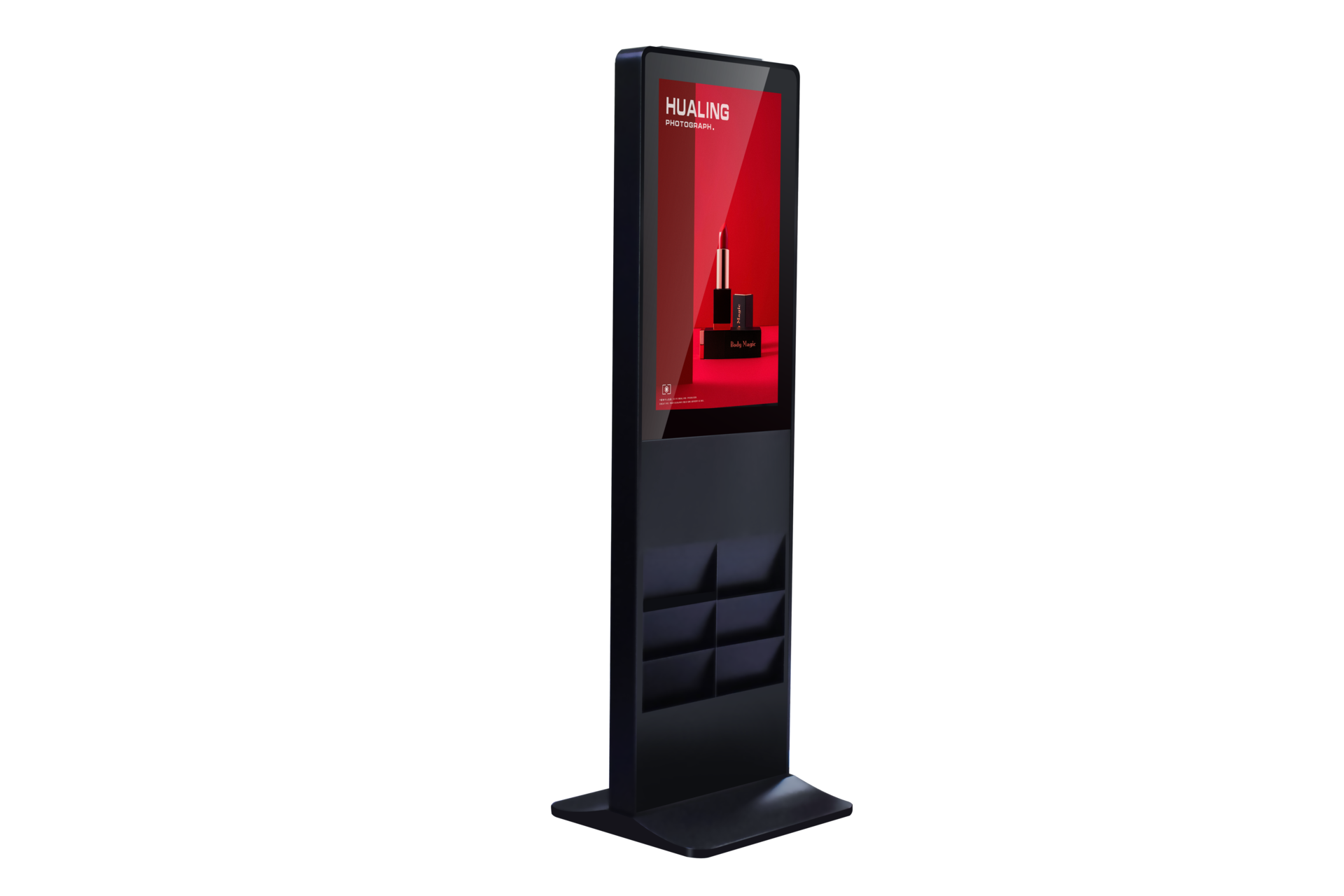

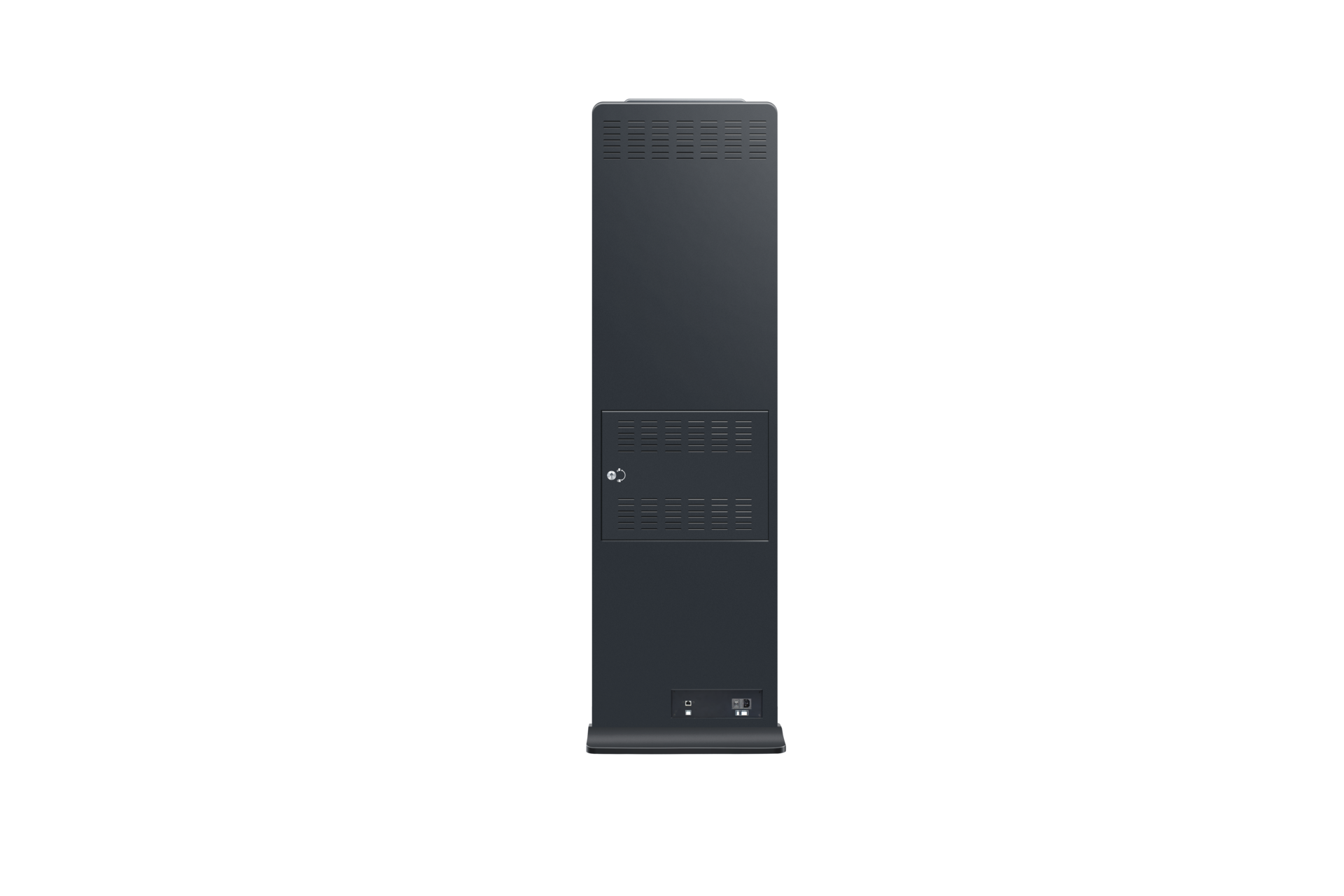

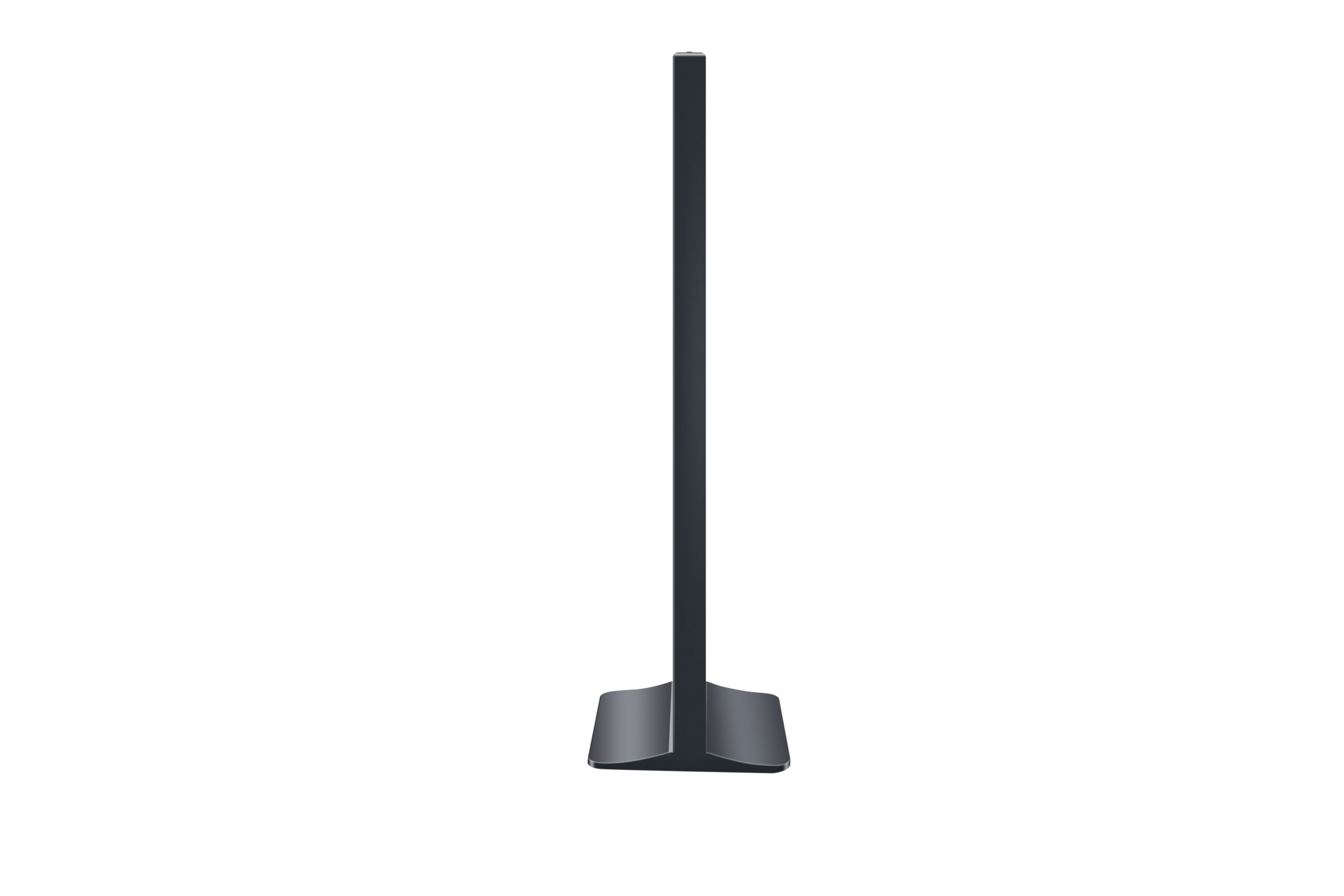

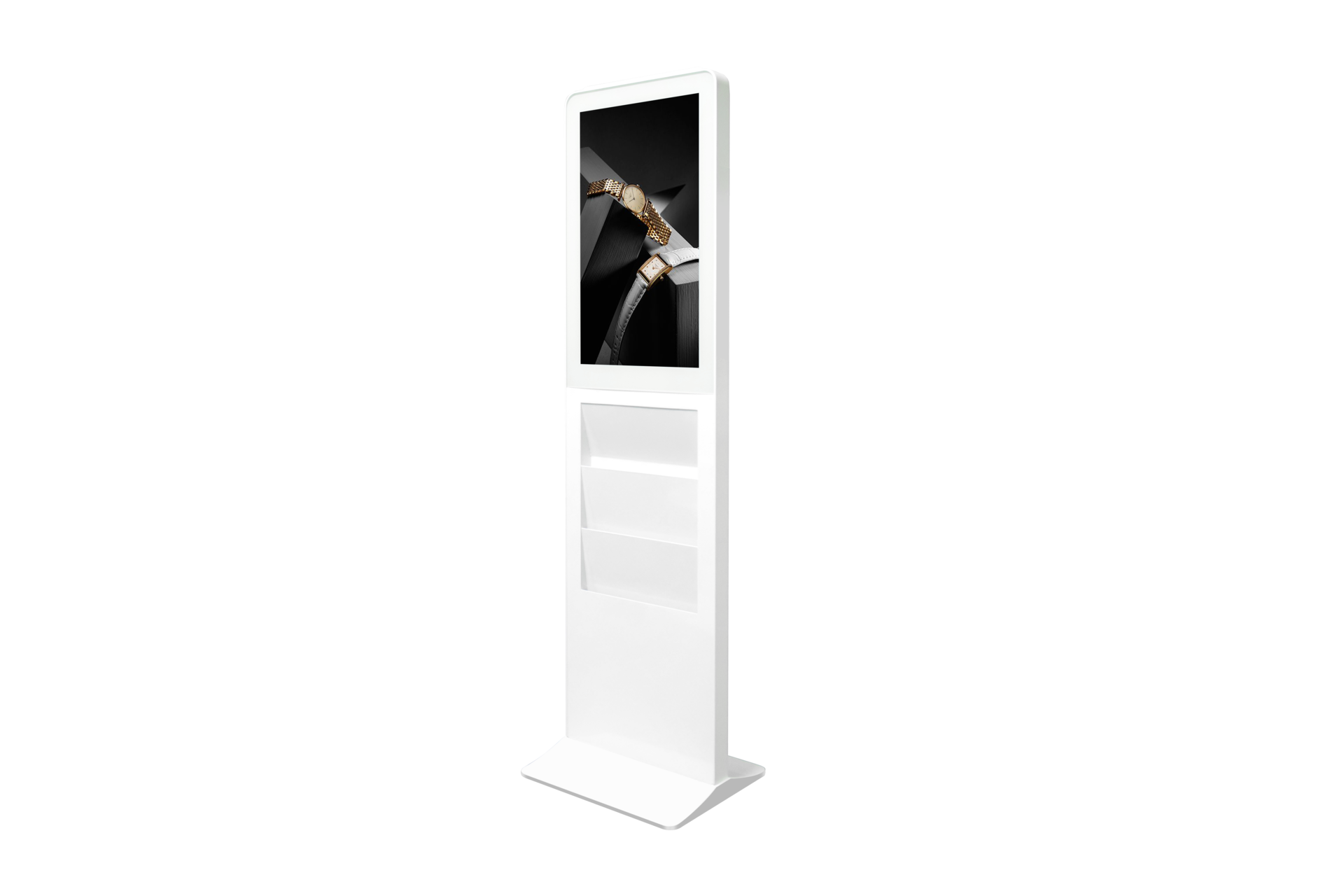

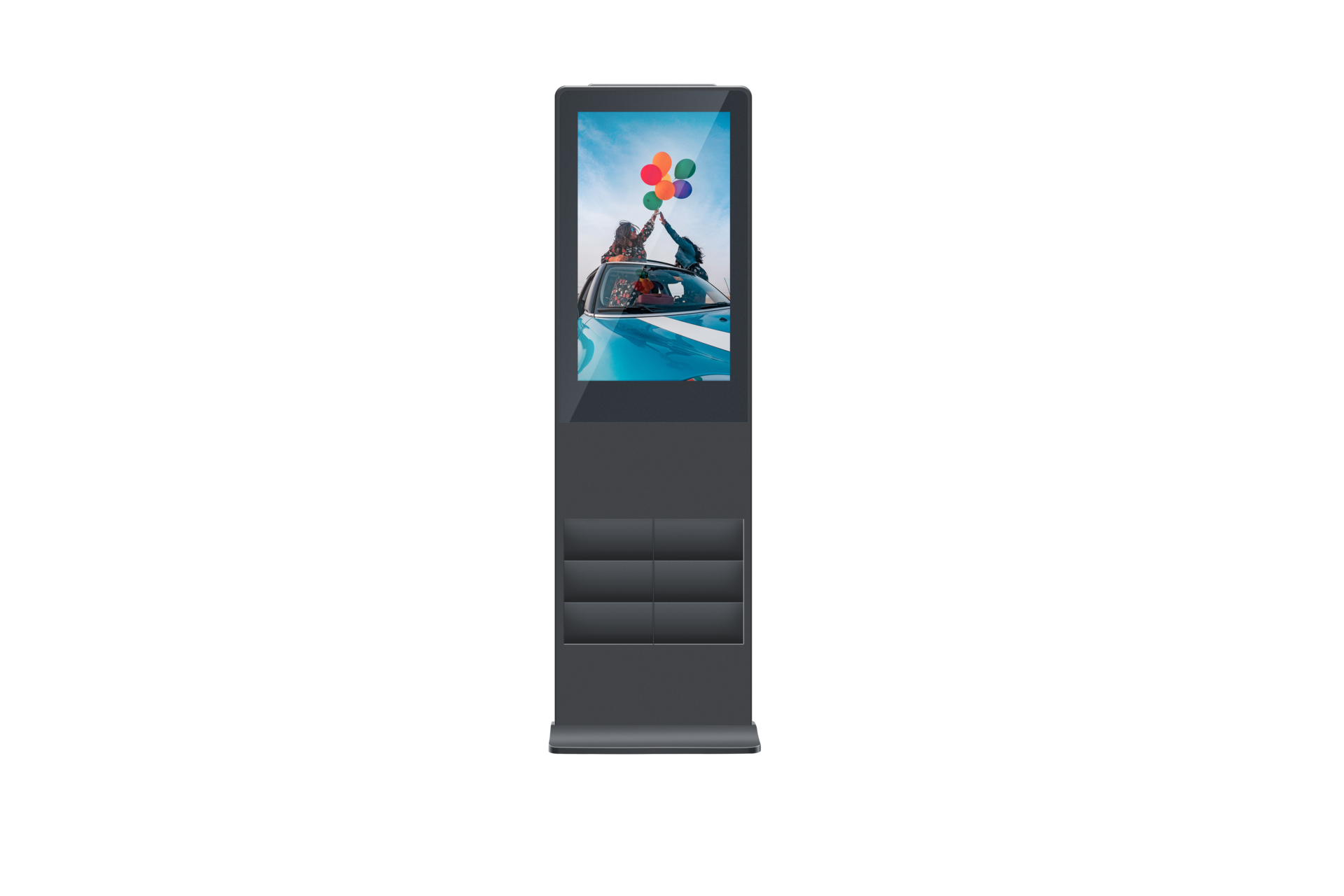

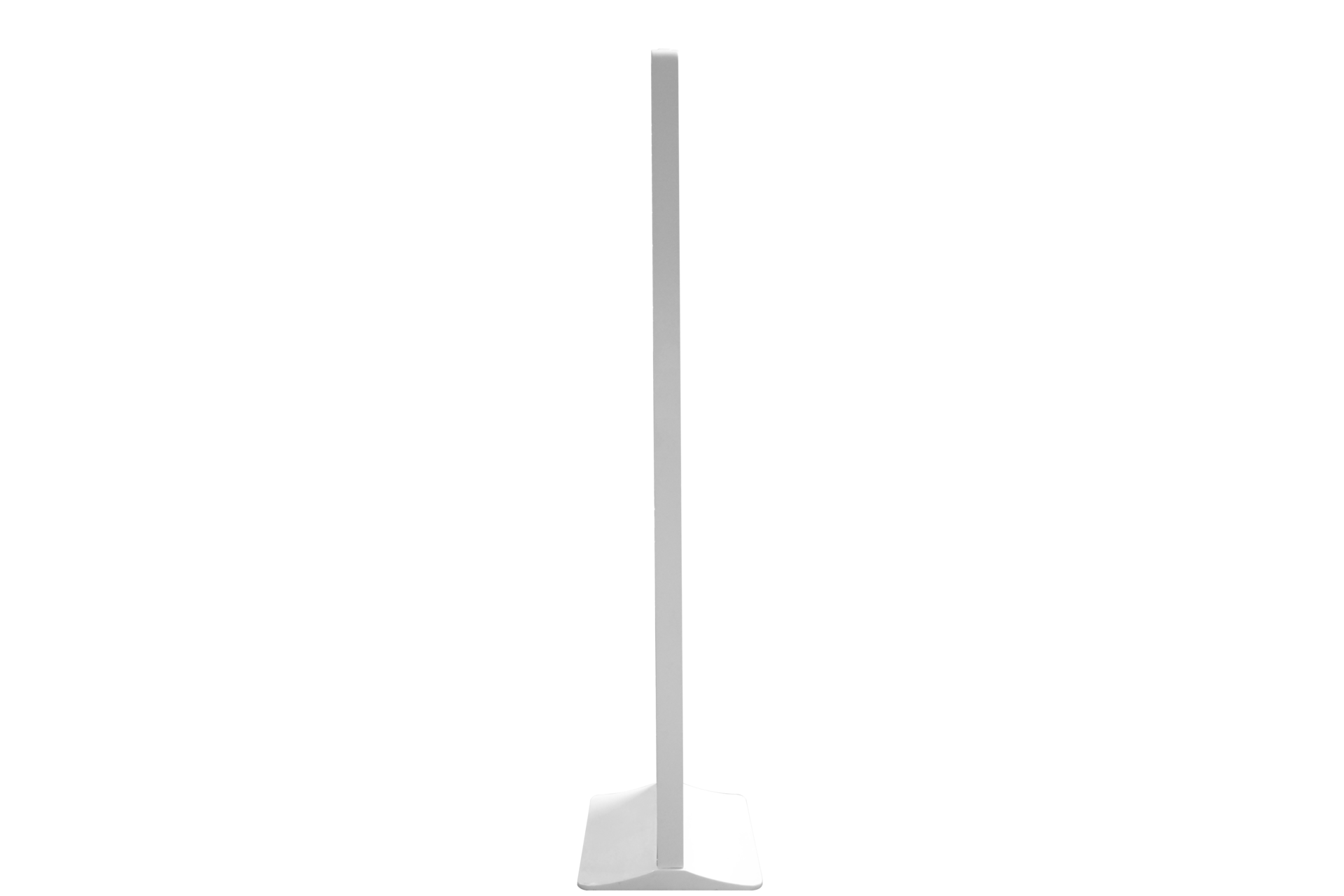

CLEARSHELF-A100

Bookshelf and Brochure Holder

Description

The Indoor BROCHURE HOLDER series with different base and style designs are made from the innovative manufacturer Firefly Visual, whose main product released to the market in 2019.. Among the LCD advertising displays we have launched, this indoor totem CLEARSHELF-A100 is inherited an entirely new design concept that design of the light bar on base is supplied. The supermarket, shopping mall, and the hospital shall be the targeted clients for this LCD advertising display and it deserves to be your initial choice.
Designed for the application of business occasion,

Features

Small and exquisite
Single column or double colum bookshelf design
Easy operation and transportation

Available Size

22″/27″/32″

Operating enviroment	Indoor BROCHURE HOLODER display	Specifications
Indoor	PANEL	Display	22"	27"	32"
		Screen Size	22"	27"	32"
		Panel Technology	IPS.M+(WRGB)	IPS,M+(WRGB)	IPS,M+(WRGB)
		Back light type	WLED	WLED	WLED
		Asper Ratio	16:09	16:09:00	16:09:00
		Native resdution	1920*1080	1920*1080	1920*1080
		Brightness	250nits	300~350nits	350nits
		contrast Ratio	1200:1	.1200:1	.1200:1
		Dynamic CR	CR≥10	CR≥10	CR≥10
		Viewing Angle(H*V)	178*178	178*178	178*178
		Response time	6ms	6ms	6ms
		Surface Treatment(Haze.Quater Wave plate)	(Haze 1%)，Hard coating (3H)	(Haze 1%)，Hard coating (3H)	(Haze 1%)，Hard coating (3H)
		Life Time(Type)	50,000 h - 60000 h	50,000 h - 60000 h	50,000 h - 60000 h
		Operation Hours	24h	24h	24h
		Orientation	Portrait & Landscape	Portrait & Landscape	Portrait & Landscape
	Connectivity	Input	USB*2	USB*2	USB*2
		Output	External Speaker Out(L/R)	External Speaker Out(L/R)	External Speaker Out(L/R)
		External Control	RJ45	RJ45	RJ45
	PHYSICAL SPECIFICATION	Protection Glass	4mm(Degree of Protection, Tempered)	4mm(Degree of Protection, Tempered)	4mm(Degree of Protection, Tempered)
		Bezel Color	black/white	black/white	black/white
		Bezel width
		Monitor Dimension(WxHxD)
		Weight(head)
		Packing dimensions(WxHxD)
		Packing weight(G.W)
	KEY FEATURE	NO system with HDMI input Optional Android or windows system
	ENVIRONMENT CONDITIONS	Operation Temperature	0°C to 40 °C	0°C to 40 °C	0°C to 40 °C
	ENVIRONMENT CONDITIONS	Operation Humidity	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing
	POWER	Power Supply	100-240V~, 50/60Hz	100-240V~, 50/60Hz	100-240V~, 50/60Hz
	POWER	Power Type	Built-In Power	Built-In Power	Built-In Power
	POWER CONSUMPTION	Typ./Max.	23w/33W	39w/55w	66w/94w
	POWER CONSUMPTION	Smart Energy Saving
	CERTIFICATION	Safety
	CERTIFICATION	EMC
	SOFTWARE COMPATIBILITY	SuperSign	Yes(CMS, Control)	Yes(CMS, Control)	Yes(CMS, Control)
	ACCESSORY	Basic	Remote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery
