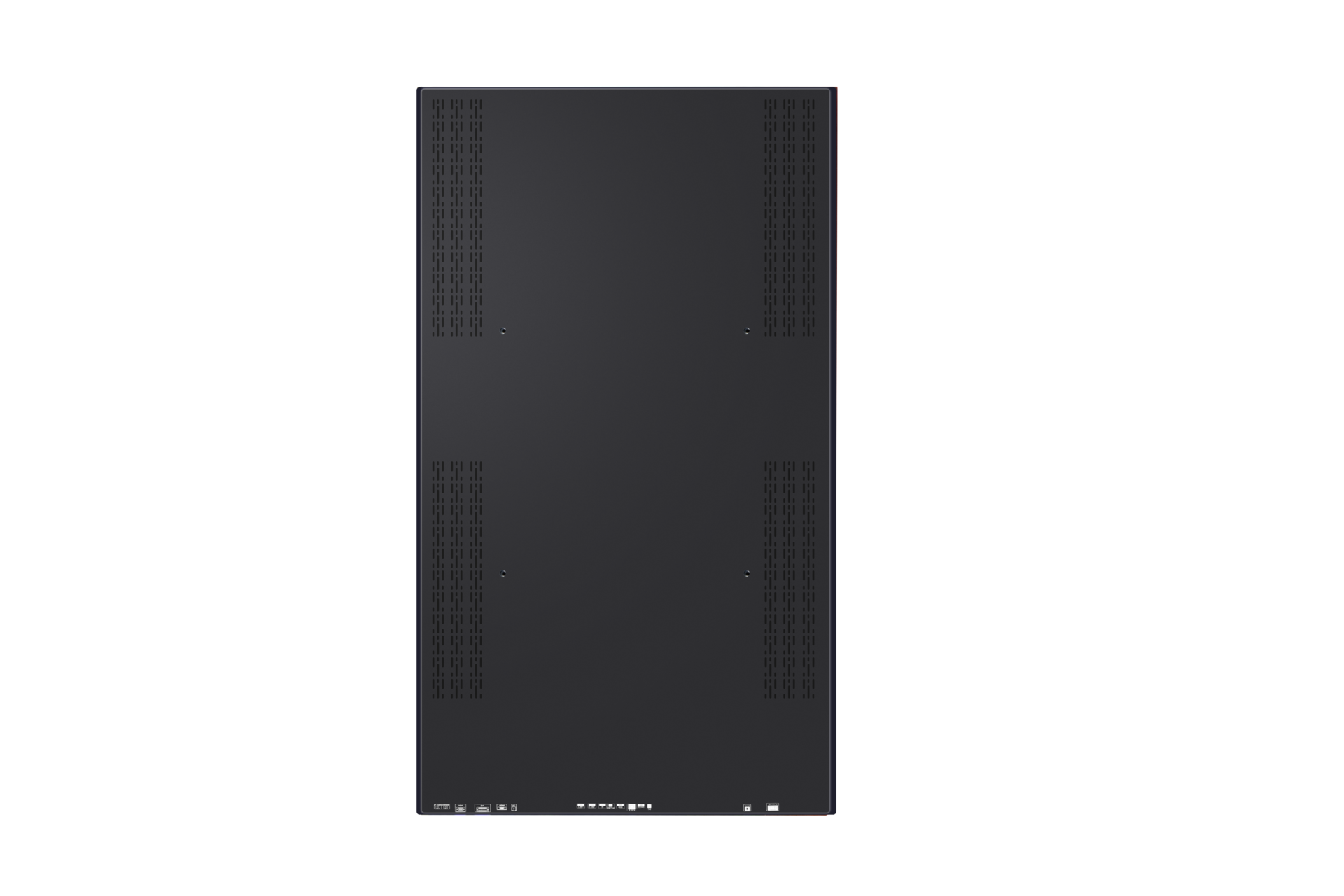

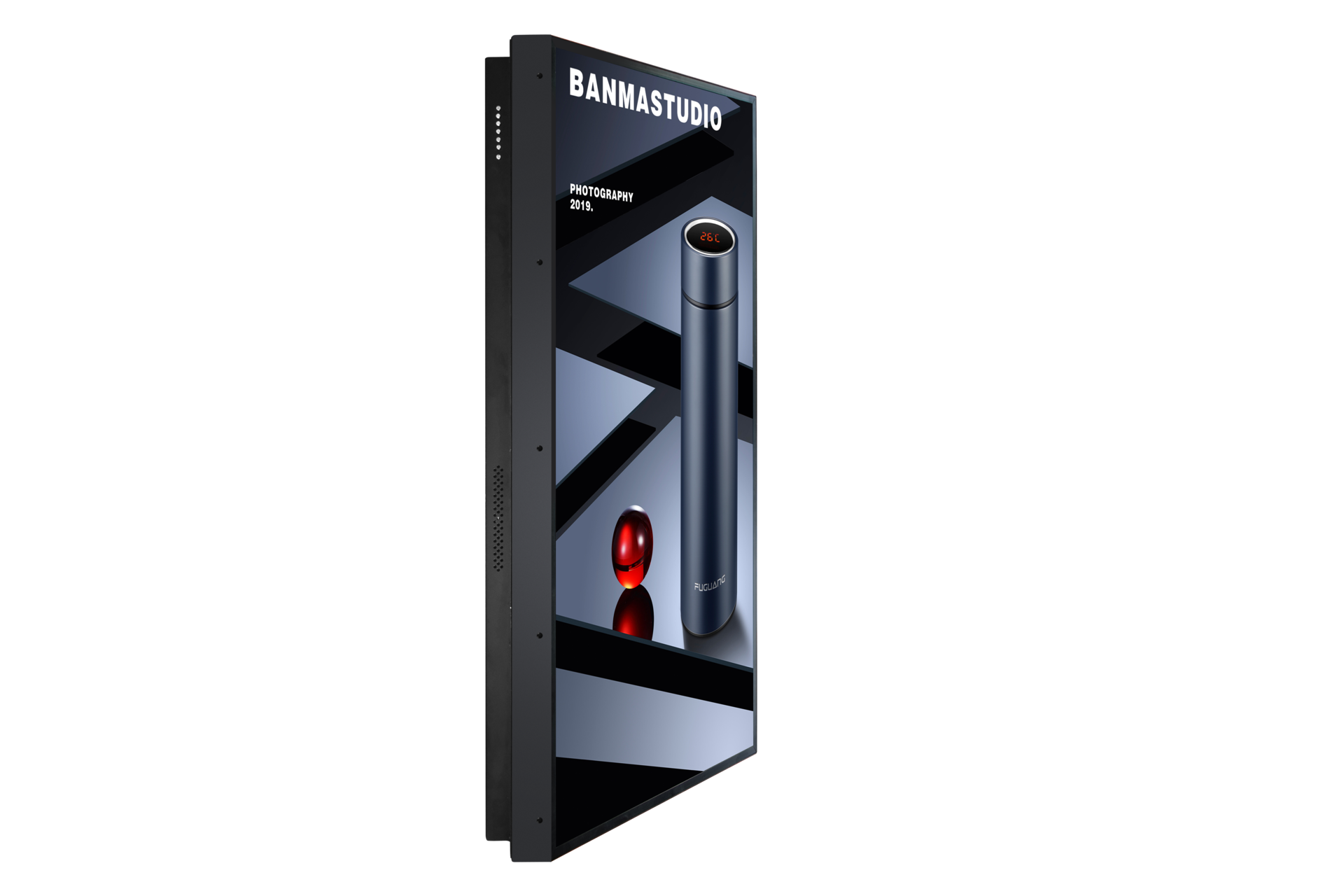

SMARTPIC-V100

High Brightness Window Display

Description

Smartpic-V100, supports 3 installations-wall mounted, ceiling hanging and cart mounted, With 1000 and 3000 nits brightness for option, Smartpic-V100 LCD virtual window no doubt will satisfy your needs to a large extend. The ultra-slim frame design highlights the pic and video content which makes it look more real and dynamic. It is a good choice for the digital window display application.

Features

Shopping window application on it
Support landscape and portrait screen mode
High brightness screen ranging from 1500nits – 3000nits
Excellent performance for heat dissipation
Super slim frame design

Reference Dimension

55″:1251*722*100mm(L*W*D)

Operating enviroment	SEMI-Outdoor window display	Specifications
Semi-Outdoor	PANEL	Display		32"	43"	49"	55"
		Screen Size		32"	43"	49"	55"
		Panel Technology		IPS,M+(WRGB)	IPS,M+(WRGB)	IPS.M+(WRGB)	IPS,M+(WRGB)
		Back light type		WLED	WLED	WLED	WLED
		Asper Ratio		16:09	16:09	16:09	16:09
		Native resdution		1080*1920	1080*1920	1080*1920	1080*1920
		Brightness		2000~3000nits	2000~3000nits	2000~3000nits	2000~3000nits
		contrast Ratio		.1200:1	1200:1	1200:1	1200:1
		Dynamic CR		CR≥10	CR≥10	CR≥10	CR≥10
		Viewing Angle(H*V)		178*178	178*178	178*178	178*178
		Response time		6ms	6ms	6ms	6ms
		Surface Treatment(Haze.Quater Wave plate)		(Haze 1%)，Hard coating (3H)	(Haze 1%)，Hard coating (3H)	(Haze 1%)，Hard coating (3H)	(Haze 3%)，Hard coating (2H)
		Life Time(Type)		50,000 h - 60000 h	50,000 h - 60000 h	50,000 h - 60000 h	50,000 h - 60000 h
		Operation Hours		24h	24h	24h	24h
		Orientation		Portrait & Landscape	Portrait & Landscape	Portrait & Landscape	Portrait & Landscape
	Connectivity	Input		HDMI, DVI, VGA,	HDMI, DVI, VGA,	HDMI, DVI,VGA,	HDMI, DVI, VGA,
		Output		VGA， HDMI， External Speaker Out(L/R)	External Speaker Out(L/R)	External Speaker Out(L/R)	External Speaker Out(L/R)
		External Control		RJ45(LAN) In/Out	RJ45(LAN) In/Out	RJ45(LAN) In/Out	RJ45(LAN) In/Out
	PHYSICAL SPECIFICATION	Protection Glass		6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)	6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)	6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)	6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)
		Bezel Color		Black	Black	Black	Black
		Bezel width
		Monitor Dimension(WxHxD)
		Weight(head)
		Packing dimensions(WxHxD)
		Packing weight(G.W)
	KEY FEATURE	Temperature Sensor, Auto Brightness sensor, Humidity Sensor
	ENVIRONMENT CONDITIONS	Operation Temperature		.-20°C to 40 °C with fans; -30°C to 50 °C with air conditioner)	.-20°C to 40 °C with fans; -30°C to 50 °C with air conditioner)	.-20°C to 40 °C with fans; -30°C to 50 °C with air conditioner)	.-20°C to 40 °C with fans; -30°C to 50 °C with air conditioner)
	ENVIRONMENT CONDITIONS	Operation Humidity		.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing	.-10°C to 80 °C RH Non-condesing
	POWER	Power Supply		100-240V~, 50/60Hz	100-240V~, 50/60Hz	100-240V~, 50/60Hz	100-240V~, 50/60Hz
	POWER	Power Type		Built-In Power	Built-In Power	Built-In Power	Built-In Power
	POWER CONSUMPTION	Typ./Max.	2000nits	120W/180W	180W/255W	210W/290W	260W/360W
			2500nits	150W/200W	225W/310W	245W/340W	320W/445W
			3000nits	175W/230W	260W/360W	260W/400W	370W/510W
	CERTIFICATION	Safety
	CERTIFICATION	EMC
	SOFTWARE COMPATIBILITY	SuperSign		Yes(CMS, Control)
	ACCESSORY	Basic		Remote Controller, Manual(EIG, IG , OM), Regulation Book, HDMI Cable , POWER CABLE
