SMARTPIC-SH100

High Brightness Window Display

Description

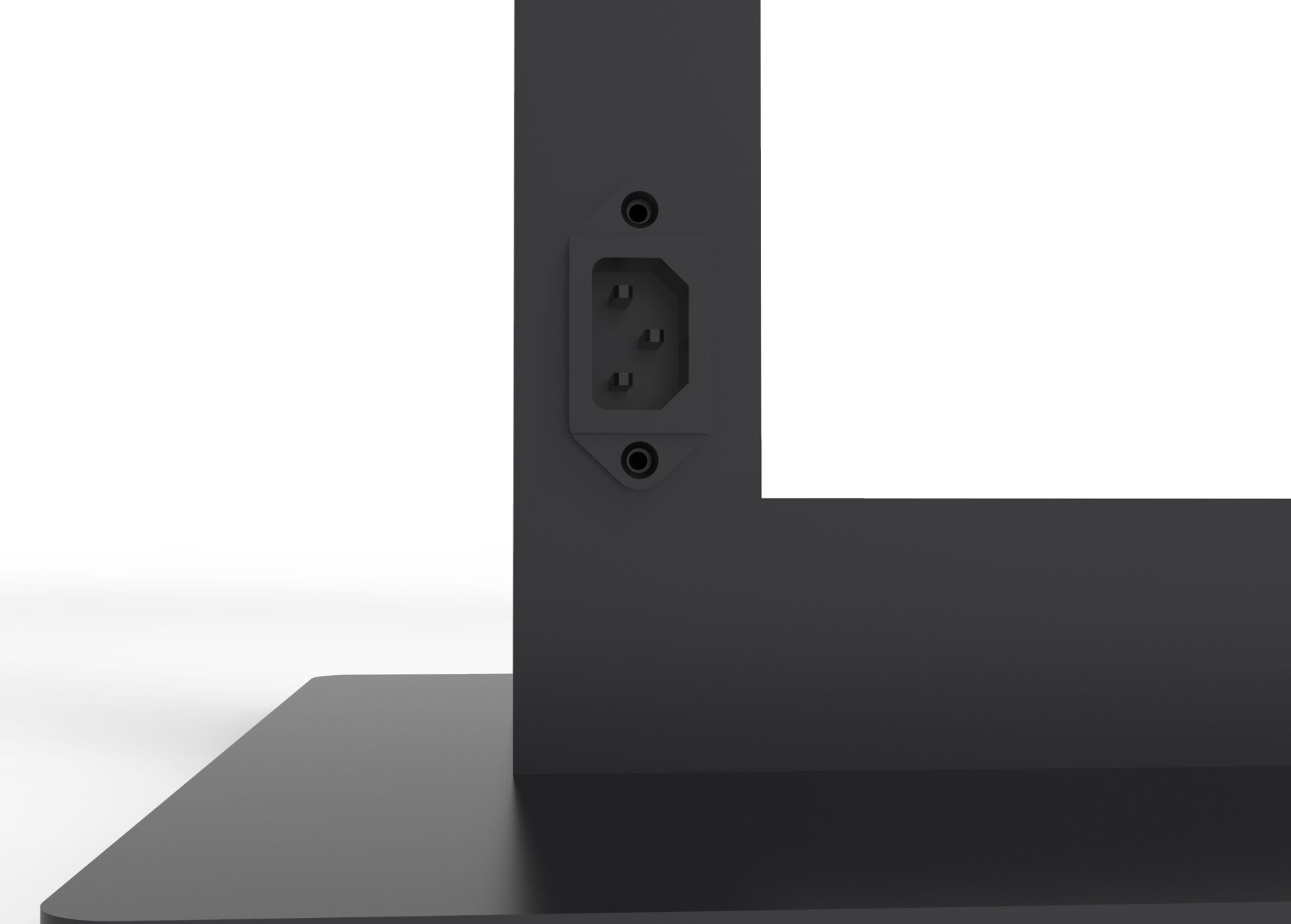

  • The semi-outdoor window display, a new style of window digital display released in 2020. You can choose to install the ceiling hanging or floor standing type. Equipped with a slim design and frame, and high brightness for application, the window LCD display shows its unique beauty. The hidden power socket and WiFi access make the appearance more attractive. It is the best shopping option for LCD display windows.

Features

  • Shopping window application on it
  • Flexible installation floor standing or hanging
  • High brightness screen options between 1500nits – 3000nits
  • Excellent performance for heat dissipation
  • Super elegant design with simple but smooth frame

Reference Dimension

  • 43″:1760*570*80mm(H*W*D)


Operating enviromentSEMI-Outdoor window displaySpecifications
Semi-OutdoorPANELDisplay32"43"49"55"
Screen Size
Panel TechnologyIPS,M+(WRGB)IPS,M+(WRGB)IPS.M+(WRGB)IPS,M+(WRGB)
Back light typeWLEDWLEDWLEDWLED
Asper Ratio16:09:0016:0916:0916:09
Native resdution1920*10801920*10801920*10801920*1080
Brightness2000~3000nits2000~3000nits2000~3000nits2000~3000nits
contrast Ratio.1200:11200:11200:11200:1
Dynamic CRCR≥10CR≥10CR≥10CR≥10
Viewing Angle(H*V)178*178178*178178*178178*178
Response time6ms6ms6ms6ms
Surface Treatment(Haze.Quater Wave plate)(Haze 1%)，Hard coating (3H)(Haze 1%)，Hard coating (3H)(Haze 1%)，Hard coating (3H) (Haze 3%)，Hard coating (2H)
Life Time(Type) 50,000 h - 60000 h 50,000 h - 60000 h50,000 h - 60000 h50,000 h - 60000 h
Operation Hours24h24h24h24h
Orientation Portrait & Landscape Portrait & Landscape Portrait & Landscape Portrait & Landscape
ConnectivityInput HDMI, DVI, VGA,  HDMI, DVI, VGA,HDMI, DVI,VGA, HDMI, DVI, VGA,
OutputVGA， HDMI， External Speaker Out(L/R) External Speaker Out(L/R)External Speaker Out(L/R)External Speaker Out(L/R)
External ControlRJ45(LAN) In/OutRJ45(LAN) In/OutRJ45(LAN) In/OutRJ45(LAN) In/Out
PHYSICAL SPECIFICATIONProtection Glass 6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective) 6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective) 6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective) 6mm for naomal products.8mm(IK 10, Degree of Protection, Tempered,Anti-Reflective)
Bezel ColorBlackBlackBlackBlack
KEY FEATURETemperature Sensor, Auto Brightness sensor, Humidity Sensor
ENVIRONMENTCONDITIONSOperation Temperature.-20°C to 40 °C with fans;-30°C to 50 °C with air conditioner).-20°C to 40 °C with fans;-30°C to 50 °C with air conditioner).-20°C to 40 °C with fans;-30°C to 50 °C with air conditioner).-20°C to 40 °C with fans;-30°C to 50 °C with air conditioner)
Operation Humidity.-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing .-10°C to 80 °C RH Non-condesing
POWERPower Supply 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz
Power TypeBuilt-In PowerBuilt-In PowerBuilt-In PowerBuilt-In Power
POWERCONSUMPTIONTyp./Max.2000nits120W/180W180W/255W210W/290W260W/360W
2500nits150W/200W225W/310W245W/340W320W/445W
3000nits175W/230W260W/360W260W/400W370W/510W
SOFTWARECOMPATIBILITYSuperSignYes(CMS, Control)


ACCESSORYBasicRemote Controller, Manual(EIG, IG , OM), Regulation Book,  HDMI Cable , POWER CABLE
